HTP DIN 43650 / ISO 4400 (EN 175301-803) Form A top entry molded cable assembly (Order code: OM550ZRBTE2G3M) features 2 poles + 2 Grounds, 24V LED light with MOV Surge Suppression, & 3 meters of HO5VVF PVC 3 conductor cable. The ground location is at 12 & 6 O'clock for easy rotation of cable exit on valve. The 24V AC/DC red LED indicator confirms voltage supply while the MOV gives overvoltage protection to the source and load. Includes connector/cable, center screw & NBR profile gasket.

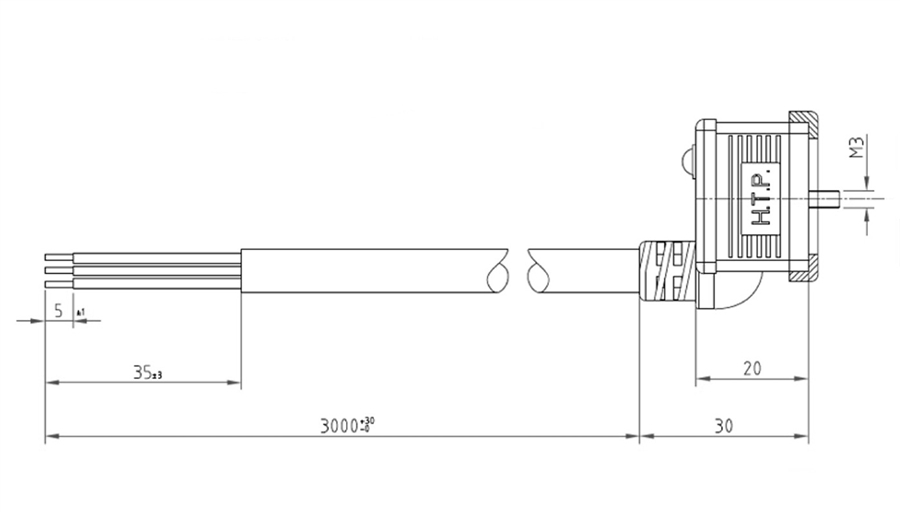

Note: Non-circuited connector shown, please refer to drawings
Wiring Code ( 2 poles + Jumpered Ground)
Pin#1 = Brown
Pin#2 = Blue
Ground = Yellow/Green (Ground jumpered at 12 & 6 oclock positions)
Specifications
- Housing & Cable Color- Black
- Circuit Type- 24V AC/DC LED Indicator with MOV Surge Suppression
- Cable Length & Type- 3 Meters (9.84') PVC H05VVF
- Contact Spacing- 18mm
- Number of Poles- 2 Poles + 2 Grounds
- Number of Conductors- 3
- Conductor Section- 0.75mm2
- Cable Diameter- 6.8 mm (0.27")
- Ground Position- 12 & 6 O'clock positions
- Operating Temperature- -22 F to +176 F
- Fixing Screw- M3 x 21.5mm
- Stripping- 35mm Standard
- Peeling & Tinning- 5mm Standard
- Gasket- NBR Profile
- Protection Class- IP 67
