HTP Form A Solenoid Valve Connector, Unified Cable Entry, 24 V AC/DC Dual LED, 3 + Ground, Diodes

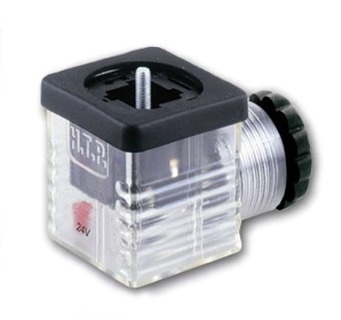

HTP DIN Connector with dual LEDs
HTP Din 43650 Form A, Unified Cable Entry, 24 V Dual LED, 3 + Ground, Diodes

Alternative Views:
Price: $15.83
Note: Delivery: 4-7 Business Days
MFG P/N: G1TU3Q81-BL
MFG: HTP
Weight (lbs): 0.12

Quantity in Stock :64


Availability: In Stock
Product Code: H550ZRC3U3RGSP
Qty:


Description

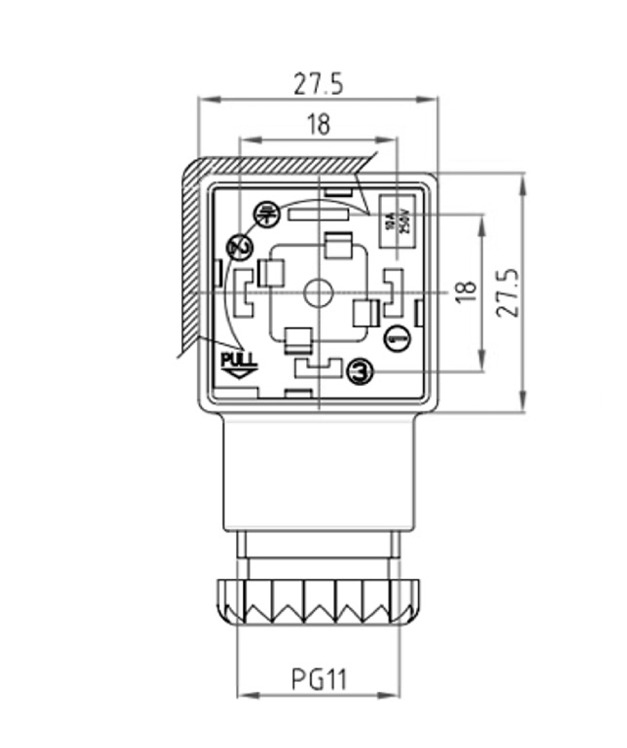

The HTP G1TU3Q81-BL (Order code: H550ZRC3U3RGSP) DIN 43650 Form A connector with 24V AC/DC dual LED indicators and diodes accommodates 5 mm to 10 mm cable. The G1TU3Q81-BL has 3 Poles + Ground with 18mm pin spacing and red & green LEDs. Ground is jumpered at the 12 o'clock position. Hardwired. Includes connector, NBR profile gasket & center screw. Note: grommet has removable insert to accommodate larger cable ranges. Rated IP 67. Note: See images for drawings

Note: Image is for reference. Actual part may differ

Specifications

  • Housing Color- Clear
  • Circuit Type- 24V AC/DC Red/Green LED Indicator w/Diodes
  • Housing Height- 30 mm
  • Type of Contact- Screw w/ conductor protection
  • Contact Spacing- 18 mm
  • Number of Poles- 3 Poles + Ground (Jumpered at 12 o'clock)
  • Housing Dimensions- 30mm H x 41mm L x 27.5mm W
  • Operating Temperature- -40 F to +257 F
  • Cable Entry- Unified (PG 9 / PG 11)
  • Maximum Conductor Size- 1.5 mm2
  • Fixing Screw- M3 x 32.5 mm
  • Gasket- NBR Profile
  • Protection Class- IP 67
