HTP Deutsch to M12 Automotive Adapter, Fits DT06

Alternative Views:

Price: $52.22

Note: Delivery: 2-5 Business Days
MFG P/N: HDCFD2000-12MD
MFG: HTP
Weight (lbs): 0.2

Quantity in Stock :18

Availability: In Stock
Product Code: HDCFD2000-12MD

Qty:

Description

The HTP HDCFD2000-12MD Deutsch to M12 automotive adapter has a 2 pin female Deutsch connection and a 3 pin M12 male connection. Connector is rated at 250V AC / 300V DC. Interchangeable with DT06 series. Deutsch connectors are often found in areas with extreme environments.

Specifications

Dimensions- 64.5 mm Length x 15.7 mm Width (2.54" x 0.6")
Deutsch Connection- Female Straight
Number of Contacts (Deutsch)- 2 Pins
M12 Connection- Male Straight

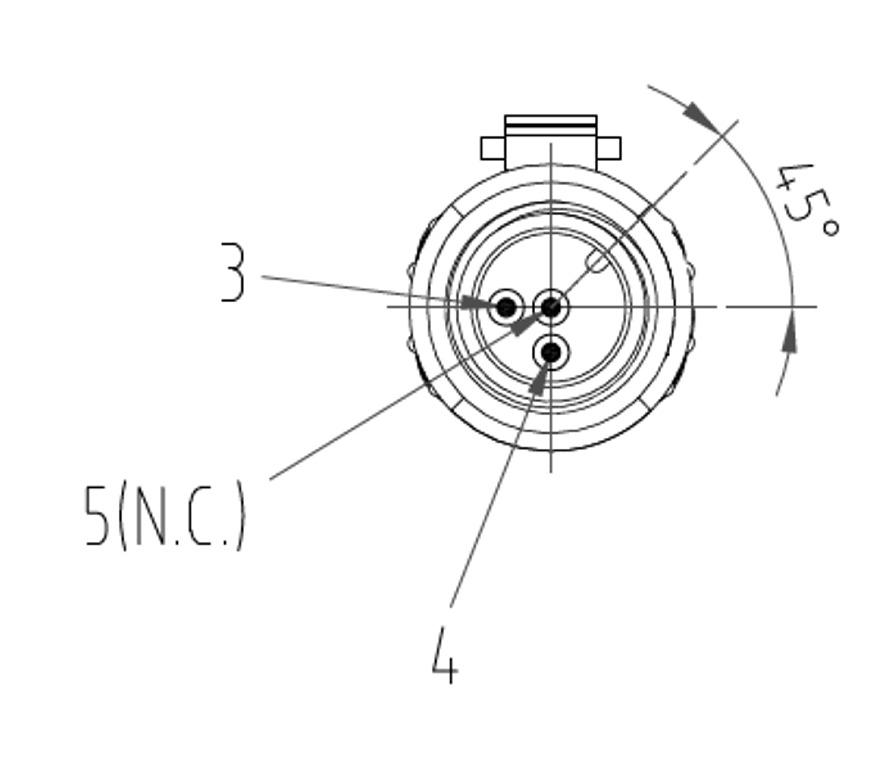

Number of Contacts (M12)- 3 Pins (only 2 are connected)
Housing Color- Black
Rated Voltage- 250V AC / 300V DC
