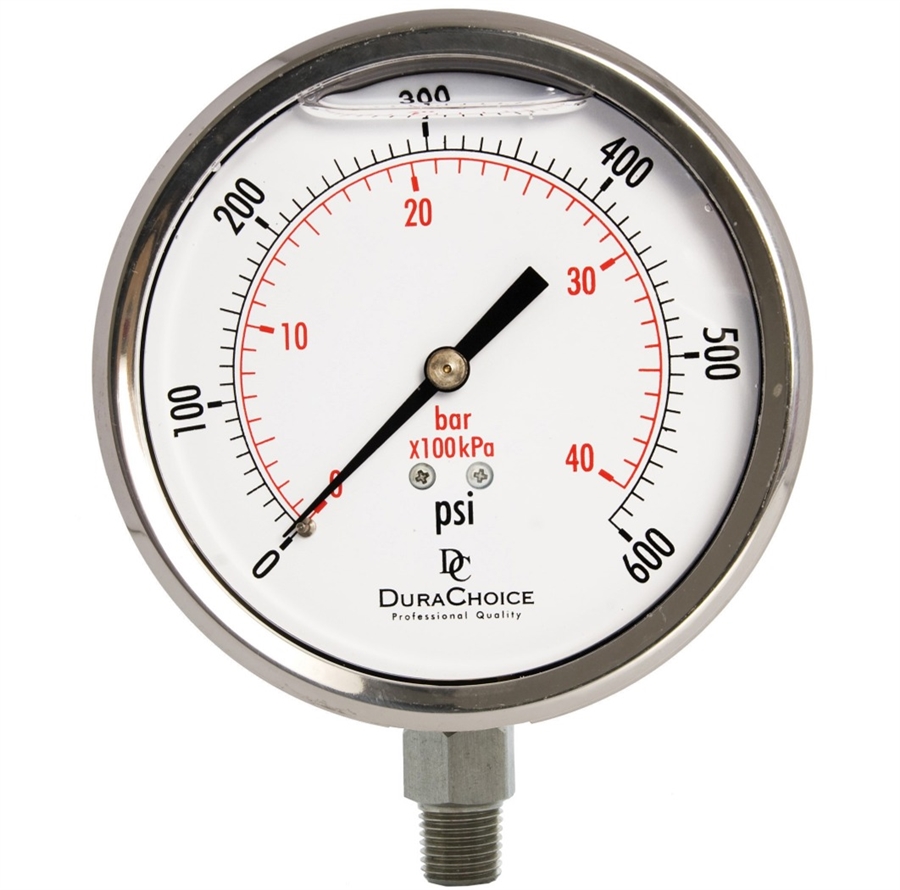

The DuraChoice PS404L-600 oil filled pressure gauge features a 4" dial size, with 1/4" NPT lower mount fitting. It has a stainless steel housing, with stainless steel fittings and a polycarbonate window. Measures 0-600 PSI. Made for water, oil, gas, or diesel. Dual scale shows PSI/Bar. The larger dial face makes the gauge easier to view from a distance. The oil filling lowers the effects of vibration and keeps the movement lubricated. Using stainless steel is ideal for applications where corrosion is a concern.
Specifications
- Housing Material- Stainless Steel
- Connection- Stainless Steel
- Movement- Stainless Steel
- Bourdon Tube- Stainless Steel
- Window Material- Polycarbonate
- Dimensions- 4.3" Diameter x 5.2" Length x 1.42" Depth
- Liquid Filling- Glycerin Oil
- Fitting Size- 1/4" NPT
- Mounting- Lower Mount
- Gauge Range- 0-600 PSI / 0-40 bar
- Normal Ambient Temperature- -4 F to 140 F (-20 C to 60 C)
To re-calibrate: To reset a gauge that does not default back to 0, start to lift out the rubber stopper on the back. This will release the internal pressure and set the gauge back to 0. Once it reaches 0, push the stopper back in.
DuraChoice 4" 0-600 PSI 1/4" NPT Stainless Steel Oil Filled Pressure Gauge
