Mencom Low Profile Panel Interface Connector, 2 DB9, Single Size Housing

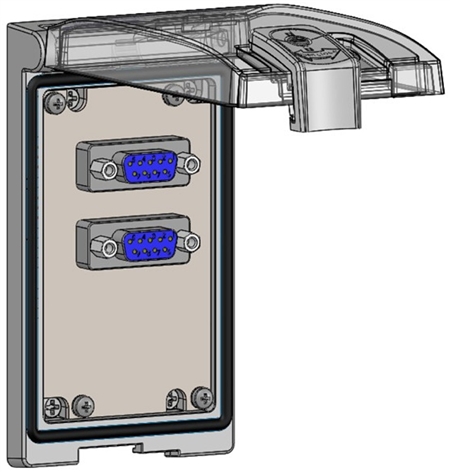

Mencom LP1-2DB9 Low Profile Programming Interface
Mencom Low Profile Panel Interface Connector, 2 DB9, Single Size Housing



Alternative Views:


Our Price: $69.72
MFG P/N: LP1-2DB9
MFG: Mencom
Weight (lbs): 0.8


Availability:
Delivery: Up to 7-10 business days
Product Code: LP1-2DB9
Qty:


Description


The Mencom LP1-2DB9 panel interface connector (PIC) features two 9 Pin D-Subs in a single cover housing. Housing is rated IP 65 and features a sliding lock mechanism that can be operated with a flat head screwdriver. Mencom PICs mount to the outside of the control panel and allow the PLC or PAC to be accessed without having to open the panel door. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.

Specifications

  • Body- Nickel Plated Zinc
  • Front Cover- Polycarbonate
  • Latch & Lock- PBT
  • Gasket- Nitrile/UL70
  • Housing- Single Cover Low Profile Housing
  • Housing Dimensions- 2.57" x 4.6" x 0.99"
  • D-Subs- (2) 9 Pin Female Ext/Male Int
  • Screw Size- M3
  • Torque- 0.9 N-m (0.675 Lb-Ft)
  • Panel Thickness- 5mm max.
  • IP Rating- IP 65

Mencom Panel Interface Connector with Two 9 Pin D-Subs LP1-2DB9
