Mencom LP1-USB-BFAF Low Profile Panel Interface Connector, USB, Single Size Housing

Alternative Views:

Price: $103.39

Note: Please call or email [email protected] for alternatives
MFG P/N: LP1-USB-BFAF
MFG: Mencom
Weight (lbs): 0.8

Quantity in Stock :(Out of Stock)

Availability: Out of Stock
Product Code: LP1-USB-BFAF

Qty:

Description

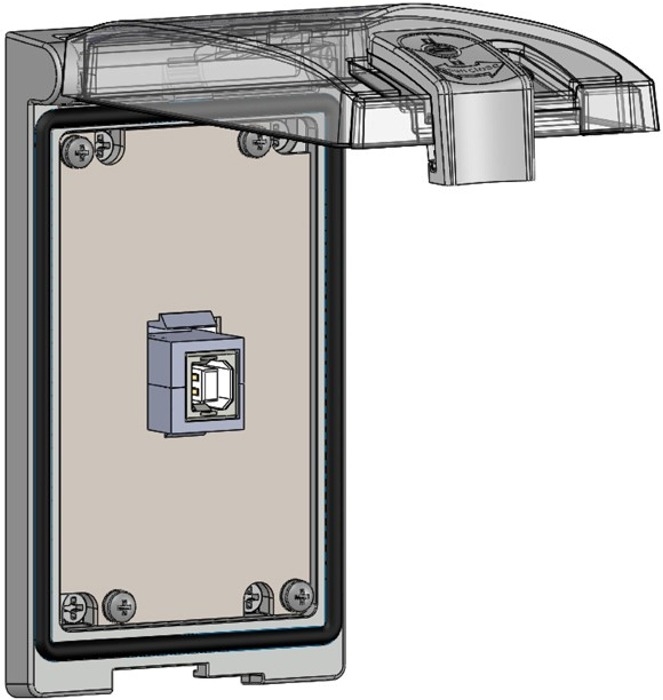

The Mencom LP1-USB-BFAF panel interface connector (PIC) features a Type B to Type A USB port in a single cover housing. Housing is rated IP 65 and features a sliding lock mechanism that can be opened using a flat head screwdriver. Mencom PICs mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.

Specifications

Body- Nickel Plated Zinc
Front Cover- Polycarbonate
Latch & Lock- PBT
Back Cover- Polypropylene
Gasket- Nitrile/UL70
Housing- Single Cover Low Profile Housing
USB- Form B to Form A Female/Female
Screw Size- M3
Torque- 0.9 N-m (0.675 Lb-Ft)
Panel Thickness- 5mm max.
UL Rating- UL Type 4, (4X), 12
IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)
