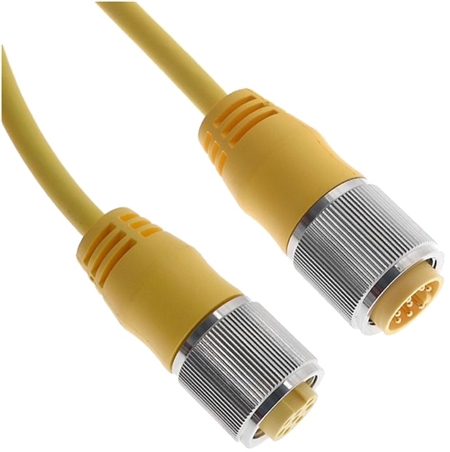

Mencom MIN-8MFPX-30 MIN Size II Cordset, 8 Pole, Male / Female, 18 AWG, 30 Feet

The Mencom MIN-8MFPX-30 MIN Size II male / female straight extension cordset features an 8 pin insert, 18 AWG wire and 30 feet of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Mencom MIN Size II cordsets have 1" mating thread, with plug and play capability for various applications.

Pin #1 - Orange
Pin #2 - Blue
Pin #3 - White/Black
Pin #4 - Black
Pin #5 - White
Pin #6 - Red
Pin #7 - Green/Yellow
Pin #8 - Red/Black

Specifications

• Body- Yellow PVC
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Clear Anodized Aluminum
• Cable- 18/8 AWM Yellow PVC Jacket
• Rated Voltage- 300 V
• Rated Current- 5 Amps
• Wire Gauge- 18
• Pin Count- 8
• Cable Length- 30 Feet (9.1 m)
• Cable O.D.- 0.35
• Temperature- -40 C to 105 C (-40 F to 221 F)
• Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
• Orientation Head 1- Male Straight
• Orientation Head 2- Female Straight
• Coupling Thread- Female
• Mating Thread / Type Head- 1-16UN2
• Ground Wire- Yes
• Nut- No
• Approvals- UL & CUL Listed

Mencom MIN Molded Cordset Part Number Guide
