Mencom MIN-7FPX-30-R MIN Size II Cordset, 7 Pole, Female Right Angle, 18 AWG, 30 Feet

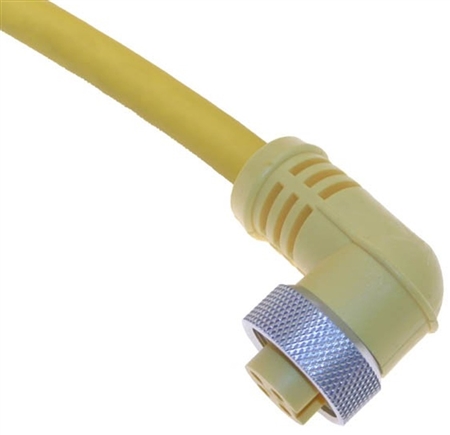

Mencom 7 Pole MIN Molded Cable - MIN-7FPX-30-R
Mencom MIN-7FPX-30-R MIN Size II Cordset, 7 Pole, Female Right Angle, 18 AWG, 30 Feet



Alternative Views:


Our Price: $78.61
MFG P/N: MIN-7FPX-30-R
MFG: Mencom
Weight (lbs): 2.5


Availability:
Call for Availability
Product Code: MIN-7FPX-30-R
Qty:


Description


The Mencom MIN-7FPX-30-R MIN Size II female right angle molded cable features a 7 pin insert, 18 AWG wire and 30 feet of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69 for protection from dust and water. Mencom MIN Size II cordsets feature 1" thread and have plug and play capability for a variety of different applications.

Specifications

  • Body- Yellow PVC
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Clear Anodized Aluminum
  • Cable- 18/7 AWM 2661 Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 5 Amps
  • Wire Gauge- 18
  • Pin Count- 7
  • Cable Length- 30 Feet (9.1 m)
  • Cable O.D.- 0.33
  • Temperature- -40 C to 105 C (-40 F to 221 F)
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Right Angle
  • Coupling Thread- Female
  • Mating Thread / Type Head- 1-16UN2
  • Ground Wire- Yes
  • Nut- No
  • Approvals- UL & CUL Listed

7 Pin 30 Foot Right Angle Mini Molded Cable Mencom MIN-7FPX-30-R

Additional Product Information
Pin #1 - White/Black
Pin #2 - Black
Pin #3 - White
Pin #4 - Red
Pin #5 - Orange
Pin #6 - Blue
Pin #7 - Green/Yellow

Mencom MIN Molded Cordset Part Number Guide
