Mencom MIN-7MFPX-20 MIN Size II Cordset, 7 Pole, Male / Female, 18 AWG, 20 Feet


Mencom MIN Size II Cordset - MIN-7MFPX-20
Mencom MIN-7MFPX-20 MIN Size II Cordset, 7 Pole, Male / Female, 18 AWG, 20 Feet



Alternative Views:


Price: $109.64
Note: Please call or email [email protected] for alternative
MFG P/N: MIN-7MFPX-20
MFG: Mencom
Weight (lbs): 1.8

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: MIN-7MFPX-20
Qty:


Description

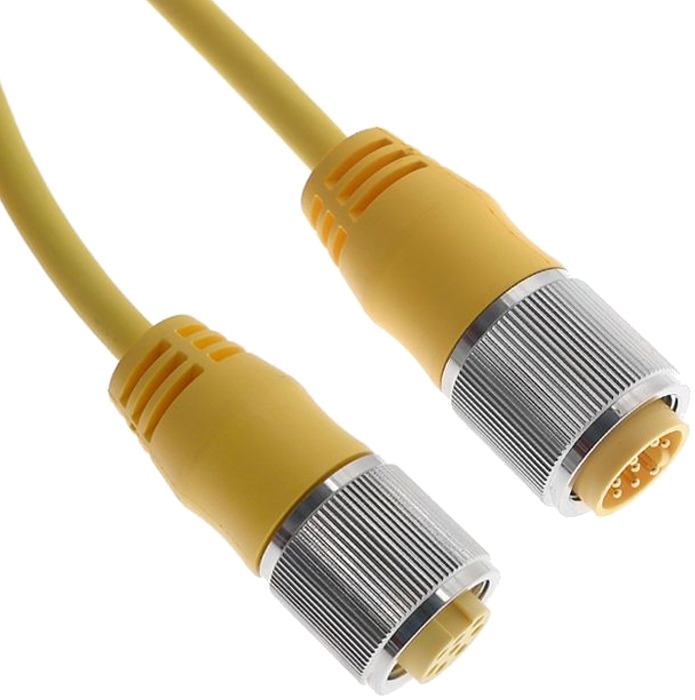

The Mencom MIN-7MFPX-20 MIN Size II male / female straight extension cordset features a 7 pin insert, 18 AWG wire and 20 feet of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Mencom MIN Size II cordsets feature 1" mating thread, with plug and play capability for different applications.

Specifications

  • Body- Yellow PVC
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Clear Anodized Aluminum
  • Cable- 18/7 AWM 2661 Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 5 Amps
  • Wire Gauge- 18
  • Pin Count- 7
  • Cable Length- 20 Feet (6.1 m)
  • Cable O.D.- 0.33
  • Temperature- -40 C to 105 C (-40 F to 221 F)
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head 1- Male Straight
  • Orientation Head 2- Female Straight
  • Coupling Thread- Female
  • Mating Thread / Type Head- 1-16UN2
  • Ground Wire- Yes
  • Nut- No
  • Approvals- UL & CUL Listed

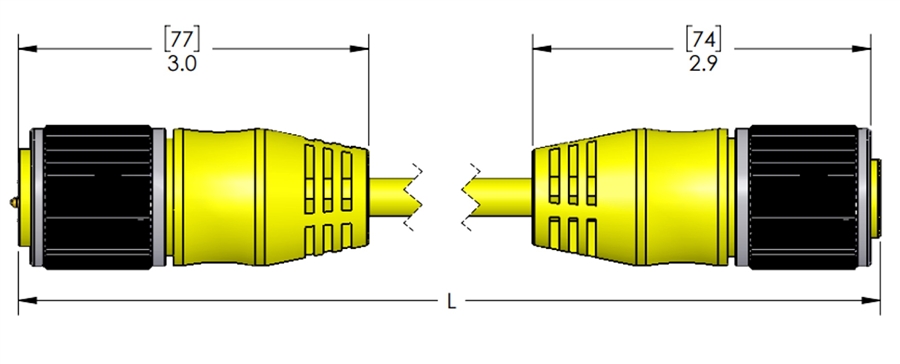

Mencom 20 Foot 7 Pin Mini Extension Cable MIN-7MFPX-20

Additional Product Information
Pin #1 - White/Black
Pin #2 - Black
Pin #3 - White
Pin #4 - Red
Pin #5 - Orange
Pin #6 - Blue
Pin #7- Green/Yellow

Mencom MIN Molded Cordset Part Number Guide
