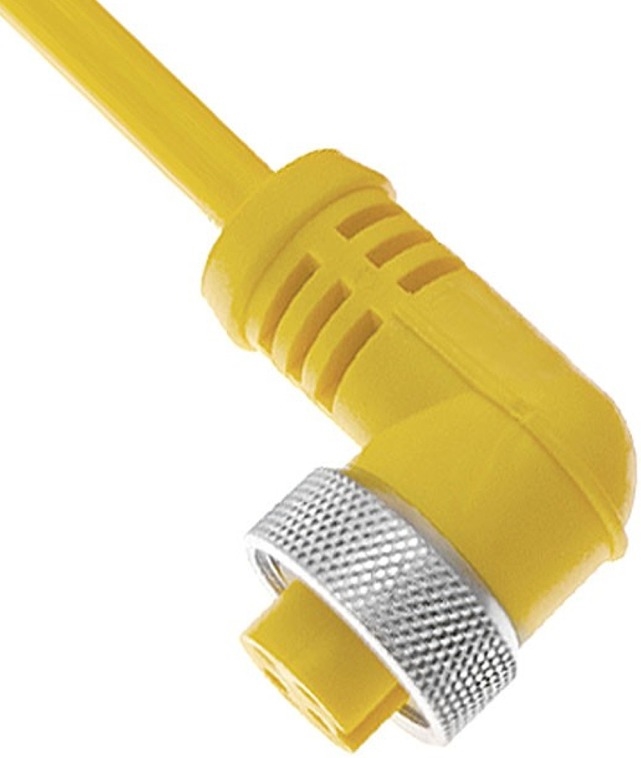

Mencom MINE-5FPX-10M-R MIN Size I Cordset, 5 Pole, Female Right Angle, 18 AWG, 10 M

The Mencom MINE-5FPX-10M-R MIN Size I female right angle cordset features a 5 pin insert, 18 gauge wire and 10 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MIN Size I (7/8") cordsets provide plug and play solutions for various applications. European color code.

Pin #1 - Black
Pin #2 - Blue
Pin #3 - Green/Yellow
Pin #4 - Brown
Pin #5 - White

Specifications

• Body- Yellow PVC
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Clear Anodized Aluminum
• Cable- 18/5 AWM 2661 Yellow PVC Jacket
• Rated Voltage- 300 V
• Rated Current- 5.5 Amps
• Wire Gauge- 18
• Pin Count- 5
• Cable Length- 10 Meters (32.8 feet)
• Cable O.D.- 0.29
• Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
• Orientation Head- Female Right Angle
• Coupling Thread- Female

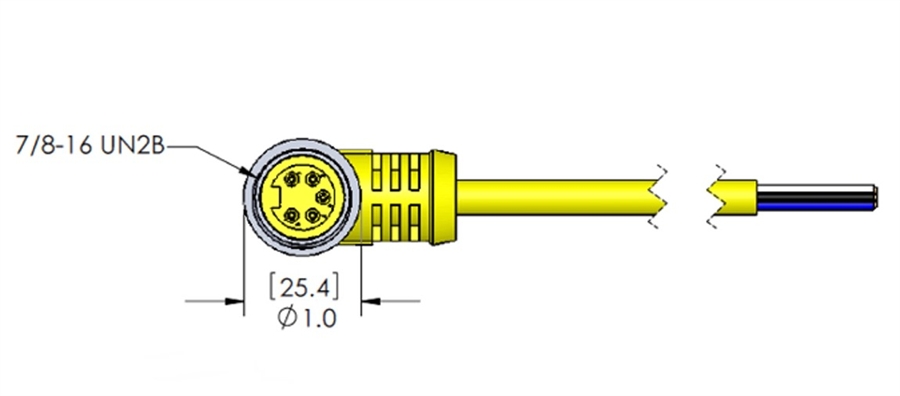

• Mating Thread / Type Head- 7/8-16UN2
• Ground Wire- Yes
• Nut- No
• Approvals- UL & CUL Listed
