M23-FS12 is a Sealcon Female Straight M23 12 Pole Signal Connector designed for configurable industrial signal connections. It features a nickel plated die cast zinc housing/body with gold plated brass alloy contacts.12 PoleIP67 / IP69K8A
Housings, male/female inserts & optional crimp contacts are selected based on customer preferences. Male or female inserts can be inserted into the same housing, increasing adaptability. Features integrated strain relief. Operating temperature: - 40 C to 125 C (- 40 F to 257 F). Rated IP 67 / IP 69K, NEMA 4x.
🔌 Modular Insert & Contact System
Flexible Configuration: Select the housing, insert, and optional crimp contacts based on the application.
Contact Security: No tools are needed to install or take out crimp contacts - Reduced chance of damage to the insert or contacts due to repeated installation or removal. The Euro Lock System inside the insert keeps the contacts in place
Vibration Support: SLS (Spring Loaded Sockets) for high vibration areas - Socket contacts have an integrated spring to increase the reliability of the connection and add support, up to 50g of shock and 10g continuous force.
Key Features
- Crimp contacts machined
- Solder contacts for manual soldering for PC boards
- Color coded spacers for male and female inserts
- UL & CSA approvals
- RoHS & Deca BDE compliant
- Integrated strain relief: supports secure cable termination
- - 40 C to 125 C (- 40 F to 257 F) operating temperature range
✅ Why Choose This M23 Connector?
This connector combines the M23 housing with configurable insert and contact options, making it a practical choice for industrial signal wiring where flexibility, sealing, and serviceability matter.
Applications
The M23-FS12 is suited for industrial signal and control wiring applications that require sealed M23 circular connectors:
- Industrial automation control wiring
- Machine tools and production equipment
- Servo, encoder, and feedback signal connections
- Panel wiring and field-device connections
- Harsh environments requiring IP67/IP69K protection
How to Order
- Select a housing - Connector housings offer 3 different cable ranges
- Select an insert - 12 pole male (pin) and female (socket) inserts are available with solder contacts or no contacts (for crimping). Inserts with ground (PE) have the ground located at the 9th contact position
- Select optional crimp contacts - Choose from either 1mm pin or socket crimp contacts (sold in sets of 12). Please Note: Separate contacts are not necessary for inserts with solder contacts (choose the No Contacts Required option)
⚠️ Important Selection Info
Confirm insert and contact style before ordering; separate crimp contacts are not required when solder-contact inserts are selected.

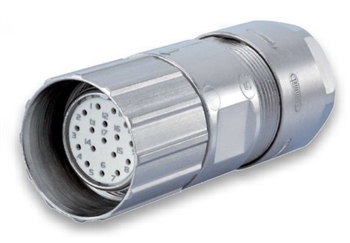

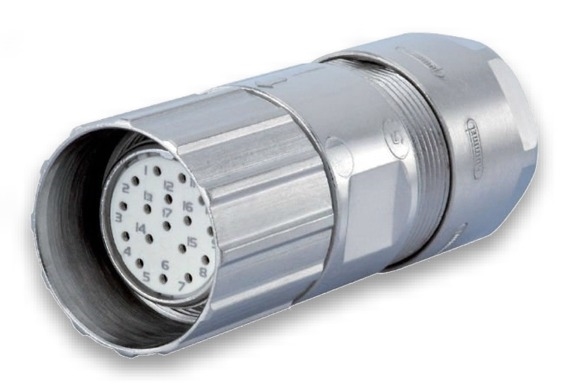

Image note: Note: 17 pole connector pictured.
Connector Benefits
- Modular design supports application-specific housing, insert, and contact combinations
- Euro Lock System helps retain contacts during installation and service
- Nickel plated die cast zinc construction supports industrial durability
- UL, CSA, RoHS, and Deca BDE compliance details are listed in the source product data
📚 Selection Resources
Housing Selection
→ Choose from 3 cable ranges based on cable size and housing style
Insert & Contact Selection
→ Match the 12 pole insert with solder contacts or compatible crimp contacts
🧩 Configurable M23 Build
Select the housing, male or female insert, and optional crimp contacts to build the M23 connector configuration required for your application.
