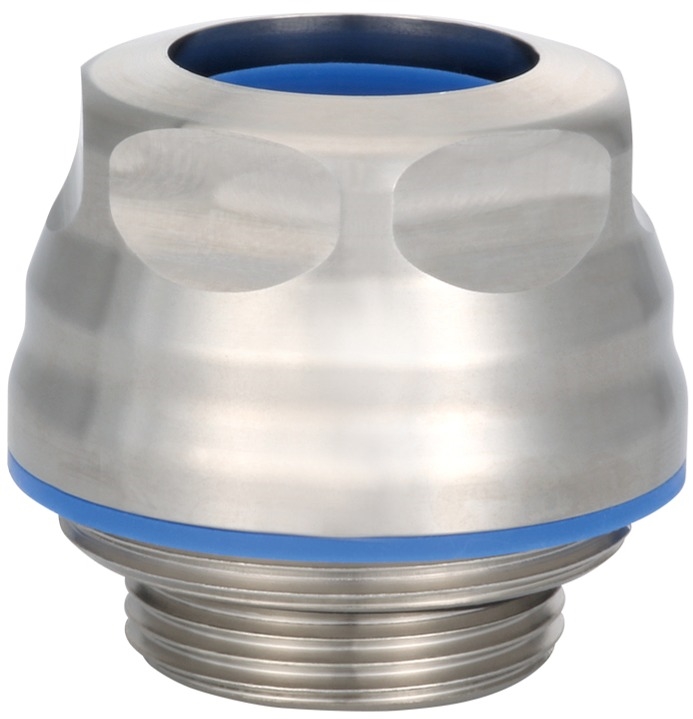

Sealcon RG32MA-6S high quality stainless steel hygienic cord grip is designed for the toughest applications. Also known as Hummel 1.740.3203.50. Sold Individually.
Locking nut sold separately. Note: Special order item, please allow for a longer lead time.
Specifications
- Thread Size: M32 x 1.5
- Cable O.D. Range: .83" - .98" (21 - 25 mm)
- Through Hole Diameter: 1.77" (45 mm)
- Body Length: 1.04" (26.5 mm)
- Thread Length: .31" (8 mm)
- Wrench Flat Dome: 1.42" (36 mm)
- Wrench Flat Body: 1.42" (36 mm)
Features
- 316L Stainless Steel Material
- Perfect in wash down IP68 (NEMA 6) applications
- Prevents bacteria and micro-organism build-up
- Smooth surface keeps foreign material from collecting
- Higher temp rating -40 F to 248 F (-40 C to 120 C)
- Resists disinfectant, cleaners, acids and alkalis
- Water cannot collect on the surface or in the cable gland
- 150 psig (10 bar) Pressure Rating
- Durable Rugged Construction
- FDA conformed, EHEDG listed
- Passed VDMA Riboflavin test
- Halogen & Phosphate free
- EMI Ready with Braided Cable
Approvals
- RoHS Compliance
- Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of
Chemicals
- Waste Electrical and Electronic Equipment Directive
- TUM
- UL Registered
- UL Listed
Sealcon M32 x 1.5 Metric stainless steel Cord Grips, Strain Relief Fittings or Cable Glands are used to help customers attach cable or wire to various applications. This cord grip provides a NEMA 6 (IP 68) Liquid Tight Rating. The RG32MA-6S strain relief fitting is made from 316L stainless steel, which is a harder material than 303 stainless steel. Hygienic cable glands are intended for use mostly in food processing. Examples of possible applications/industries include bottling & beverage plants, dairy or meat processing, food production and packaging, medicine and agriculture. It is especially ideal for high pressure cleaning applications.
Sealcon M32 Hygienic Steel Strain Relief Fitting RG32MA-6S
|
|
|
