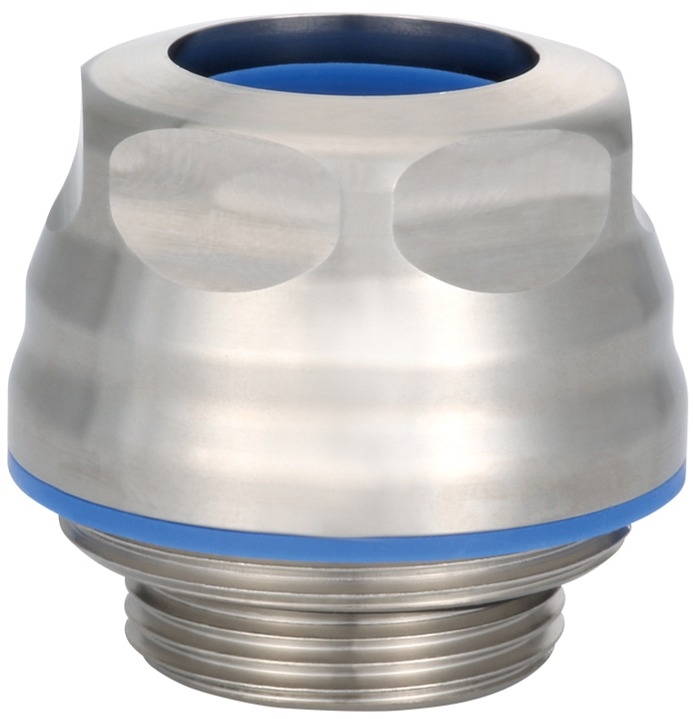

Sealcon RG25MA-6S M25 Dome .63" - .71" (16 - 18 mm) O.D. Hygienic Cord Grip

Sealcon RG25MA-6S Hygienic Strain Relief Fitting
Sealcon RG25MA-6S M25 Dome .63" - .71" (16 - 18 mm) O.D. Hygienic Cord Grip



Alternative Views:


Price: $51.56
MFG P/N: RG25MA-6S
MFG: Sealcon
Weight (lbs): 0.2

Quantity in Stock :251


Availability:
In Stock
Product Code: RG25MA-6S
Qty:

Description


Sealcon RG25MA-6S high quality stainless steel hygienic cord grip is designed for the toughest applications. Also known as Hummel 1.740.2503.50. Sold Individually. Locking nut sold separately. Note: Special order item, please allow for a longer lead time.

Specifications

  • Thread Size: M25 x 1.5
  • Cable O.D. Range: .63" - .71" (16 - 18 mm)
  • Through Hole Diameter: 1.5" (38 mm)
  • Body Length: .93" (23.6 mm)
  • Thread Length: .28" (7 mm)
  • Wrench Flat Dome: 1.18" (30 mm)
  • Wrench Flat Body: 1.18" (30 mm)

Features

  • 316L Stainless Steel Material
  • Perfect in wash down IP68 (NEMA 6) applications
  • Prevents bacteria and micro-organism build-up
  • Smooth surface keeps foreign material from collecting
  • Higher temp rating -40 F to 248 F (-40 C to 120 C)
  • Resists disinfectant, cleaners, acids and alkalis
  • Water cannot collect on the surface or in the cable gland
  • 150 psig (10 bar) Pressure Rating
  • Durable Rugged Construction
  • FDA conformed, EHEDG listed
  • Passed VDMA Riboflavin test
  • Halogen & Phosphate free
  • EMI Ready with Braided Cable

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • TUM
  • UL Registered
  • UL Listed

Sealcon M25 x 1.5 Metric stainless steel Cord Grips, Strain Relief Fittings or Cable Glands are used to assist customers when attaching cable or wire to different applications. This fitting provides a NEMA 6 (IP 68) Liquid Tight Rating. The RG25MA-6S cable gland is made from 316L stainless steel, which is a harder material than 303 stainless steel. Hygienic cable glands are recommended for use mostly in food processing. Examples of possible applications/industries include bottling & beverage plants, dairy or meat processing, food production and packaging, medicine and agriculture. It is especially suited for high pressure cleaning applications

M25 Stainless Steel Cable Gland Sealcon RG25MA-6S
