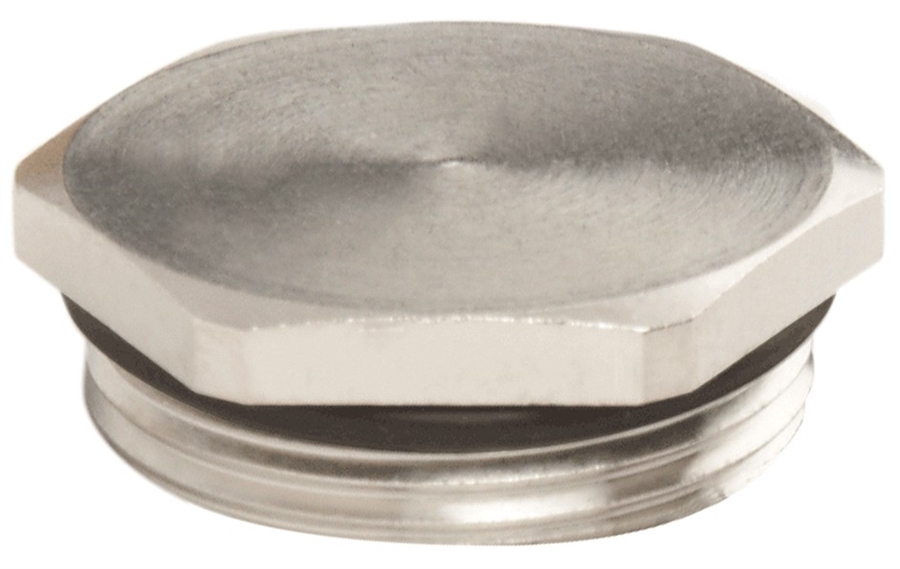

Sealcon HP-13-BR-B PG 13 Nickel Plated Brass Hex Plug w/ O-Ring

Sealcon HP-13-BR-B
Sealcon PG 13 Nickel Plated Brass Hex Plug w/ O-Ring

Alternative Views:
Price: $3.19
Note: Delivery: 2-5 Business Days
MFG P/N: HP-13-BR-B
MFG: Sealcon
Weight (lbs): 0.06

Quantity in Stock :5


Availability: In Stock
Product Code: HP-13-BR-B
Qty:

Description


Sealcon HP-13-BR-B nickel plated brass hex plug has PG 13 / 13.5 Thread. Sold Individually. Also known as Hummel 1.156.1300.01. Rated IP 68 / 69K. Comes with Buna-N O-Ring

Specifications

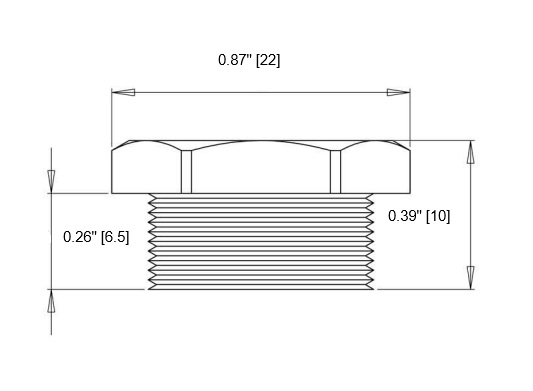

  • Thread Size: PG 13 / 13.5
  • Height: .39" (10 mm)
  • Thread Length: .26" (6.5 mm)
  • Outer Diameter: .87" (22 mm)
  • Operating Temperature: -20C° to 95C° (-4°F to 203°F)

Features

  • Nickel Plated Brass Material
  • Buna-N O-Ring
  • RoHS Compliant
  • German Lloyd Approval
