Sealcon RM-2012-SS-B M20 to M12 Stainless Steel Reducer w/ O-Ring

Sealcon RM-2012-SS-B M20 to M12 Reducer
Sealcon M20 to M12 Stainless Steel Reducer w/ O-Ring

Alternative Views:
Price: $40.04
Note: Delivery: 2-5 Business Days
MFG P/N: RM-2012-SS-B
MFG: Sealcon
Weight (lbs): 0.05

Quantity in Stock :1


Availability: In Stock
Product Code: RM-2012-SS-B
Qty:


Description

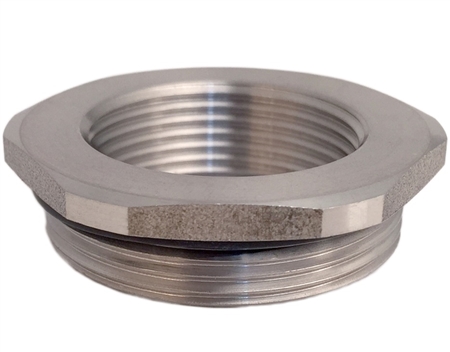

Sealcon RM-2012-SS-B 303 stainless steel reducer converts holes that fit M20 x 1.5 thread to a female M12 x 1.5 thread. Comes with Buna-N O-Ring. Sold individually. Also known as Hummel #1.097.2012.50.

Sealcon reducers allow you to switch to the smaller female size of the same thread type to fit your application needs. These reducers have an operating temperature range of -20 C to 95 C (-4 F to 203 F). RoHS & Deca BDE compliant.

Specifications

  • Male Thread Type: M20 x 1.5
  • Female Thread Type: M12 x 1.5
  • Height: .37" (9.5 mm)
  • Thread Length: .24" (6 mm)
  • Wrench Flat: .87" (22 mm)
