Sealcon CD06MW-RV M6 Mini WADI Dome .08" - .13" (2 - 3.2 mm) O.D. Cable Gland

Sealcon CD06MW-RV
Sealcon CD06MW-RV M6 Mini Dome 2 - 3.2 mm O.D. Cable Gland



Alternative Views:


Our Price: $7.58
MFG P/N: CD06MW-RV
MFG: Sealcon
Weight (lbs): 0.06

Quantity in Stock:8

Availability:
In Stock - Ships Today by 2PM EST
Product Code: CD06MW-RV
Qty:


Description


Sealcon CD06MW-RV Mini WADI nickel plated brass cord grip is liquid tight to 70 psi. M6 x 1 Metric Thread, Accommodates .08" - .13" (2 - 3.2 mm) O.D cable. Sold Individually. (Locking nut sold separately) Also known as Hummel #1.106.0600.55. This fitting provides a NEMA 4x (IP 68), 70 PSIG (5 bar) Liquid Tight Rating.

Thread Size/Type M6 x 1
  • Nickel Plated Brass Material with Viton Seal
  • Operating Temperature - -25 C to 200 C (-13 F to 392 F)
  • NEMA 4x (IP68 / IP69K)
  • 70 psig (5 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE approval

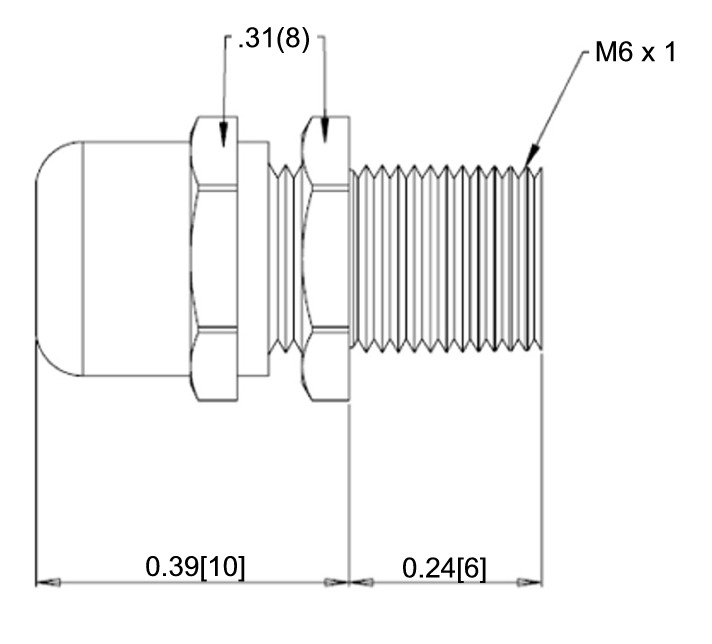

Through Hole Dia. .25" (6 mm)
Body Length .39" (10 mm)
Thread Length .24" (6 mm)
Wrench Flat Dome/Body .31" (8 mm)

Sealcon CD06MW-RV Nickel Plated Brass Cord Grips, Strain Relief Fittings or Cable Glands are used to help customers in all industries connect their cable or wire to their applications. It is perfect in tight spaces, or in applications where space is typically at a premium. Such examples include fiber optics, sensors, cameras, switches and small appliances. This Nickel Plated Brass Strain Relief with M6 x 1 metric thread will provide your application with a product made of exceptional quality.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • EAC

Sealcon Mini WADI M6 Cord Grip with Viton Seal CD06MW-RV
