Sealcon M16 Female 10-Pin Straight Signal Connector, 8 A, 160V, IP67/IP69K
Shielded Sealcon M16 female connector with 10-position insert, 28-18 AWG crimp sockets, 3-6 mm cable range, nickel-plated brass housing, and IP67/IP69K environmental protection.
Why Choose This Sealcon M16 Female Connector?
This Sealcon M16 Female 10-Pin Straight Signal Connector provides a reliable crimp connection for industrial signal and power circuits. The nickel-plated brass housing, gold-plated contact surfaces, EMI shielding, and IP67/IP69K rating help protect connections in demanding environments.
Its compact straight design is well suited to small drives and industrial automation equipment where space-efficient, shielded signal wiring is required. The 10-pin layout supports compact multi-conductor connections for small drives and related automation equipment.
🔌 10 Contacts
Provides 10 female crimp contact positions for dependable field termination
⚡ 8 A at 160V
Electrical rating supports compatible industrial signal and power circuits
📏 3-6 mm Cable Range
Accepts cable diameters from 3-6 mm (.12-.24 in.)
🛡️ IP67 / IP69K
Helps seal the mated connection against dust, water, and high-pressure washdown
⚠️ Confirm Cable, Wire, and Mating Compatibility
Before ordering, verify the 3-6 mm cable O.D. range, 28-18 AWG conductor size, 10-position contact layout, 8 A current rating, 160V voltage rating, and compatibility with the mating M16 connector.
Contacts can be inserted or removed without a dedicated insertion/removal tool. The IP67/IP69K rating applies only when the connector is correctly assembled and fully mated with a compatible component.
📋 Connector Construction and Contact Details
This connector is supplied as an unassembled housing, insert, and set of female crimp sockets for field termination.
Housing: Nickel-plated brass with EMI shielding and strain relief
Insert: PBT, 10-position female configuration
Contacts: Brass alloy with gold-plated nickel contact surfaces
Wire Range: 28-18 AWG
Contact Retention: Euro-Lock system helps keep contacts securely positioned
Key Features & Benefits
- 10-position insert for 1 mm contacts
- 28-18 AWG female crimp sockets included
- 3-6 mm (.12-.24 in.) cable O.D. range
- 8 A nominal current and 160V nominal voltage
- IP67/IP69K protection when properly assembled and mated
- Nickel-plated brass housing for mechanical durability
- Gold-plated contact surfaces support reliable conductivity
- EMI shielding helps reduce electromagnetic interference
- Integrated strain relief helps protect cable terminations
- Euro-Lock contact retention helps keep contacts in position
- More than 1,000 minimum mating cycles
- Operating temperature range of -40°F to 257°F (-40°C to 125°C)
- Supplied unassembled for field termination
Technical Specifications
|
Brand
|
Sealcon
|
|
Product Type
|
Female Straight Signal Connector
|
|
Connector Thread
|
M16
|
|
Orientation
|
Female Straight
|
|

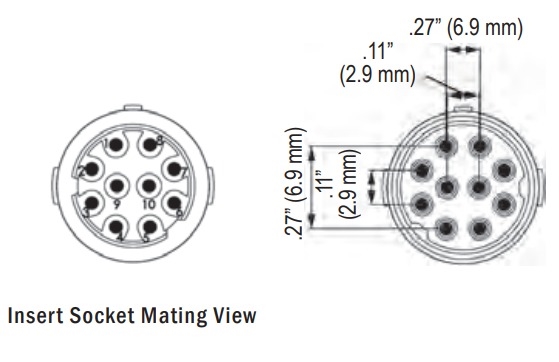

Contact Configuration
|
10
|
|
Contact Diameter
|
1 mm
|
|
Crimp Wire Range
|
28-18 AWG
|
|
Cable O.D. Range
|
3-6 mm (.12-.24 in.)
|
|
Nominal Current
|
8 A
|
|
Nominal Voltage
|
160V
|
|
Connection Type
|
Crimp Contact
|
|
Ingress Protection
|
IP67 / IP69K
|
|
Housing Material
|
Nickel-Plated Brass
|
|
Insert Material
|
PBT
|
|
Contact Material
|
Brass Alloy
|
|
Contact Surface
|
Gold-Plated Nickel
|
|
Housing Dimensions
|

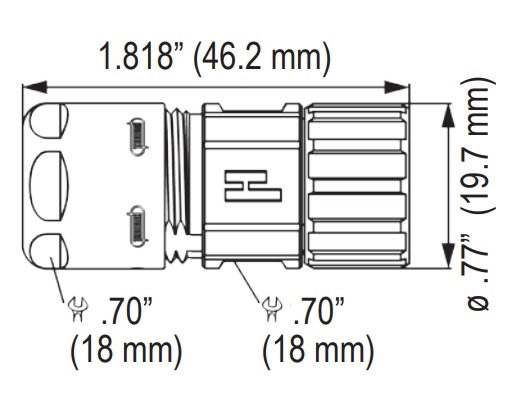

1.818 in. L x 0.77 in. diameter
|
|
Operating Temperature
|
-40°F to 257°F (-40°C to 125°C)
|
|
Minimum Mating Cycles
|
>1,000
|
|
Insulation Resistance
|
>106 MΩ
|
|
Maximum Contact Resistance
|
3 mΩ
|
|
EMI Shielding
|
Yes
|
|
Strain Relief
|
Yes
|
|
Contact Retention
|
Euro-Lock
|
|
Insertion / Removal Tool
|
No dedicated tool required
|
|
Assembly Format
|
Supplied Unassembled
|
📋 Basic Assembly Overview
1. Verify Components: Confirm the insert, contact count, wire gauge, cable diameter, and mating connector before assembly.
2. Prepare Conductors: Strip the cable jacket and individual conductors to the dimensions required for the compatible crimp contacts.
3. Crimp Contacts: Use the correct calibrated crimp tool for the 1 mm female contacts and 28-18 AWG conductors.
4. Load the Insert: Place each terminated contact into the correct insert position until the Euro-Lock retention system secures it. No dedicated insertion tool is required.
5. Complete Assembly: Assemble the housing and strain relief around the 3-6 mm cable, then mate the connector and verify a secure seal.
Follow the applicable Sealcon assembly instructions and electrical requirements before energizing the connection.
📦 What's Included
• (1) Nickel-plated brass straight housing
• (1) Female PBT 10-position insert
• (10) 28-18 AWG 1 mm female crimp sockets
📞 Configuration and Application Support
The housing, insert, and crimp contacts may also be available separately. Custom connector configurations are available for applications with different cable, contact, or electrical requirements.
Need help selecting a compatible M16 connector?
Call 800-966-2345 for product and configuration assistance.
|
|
|
 |
|
 |
|
