Overview
The

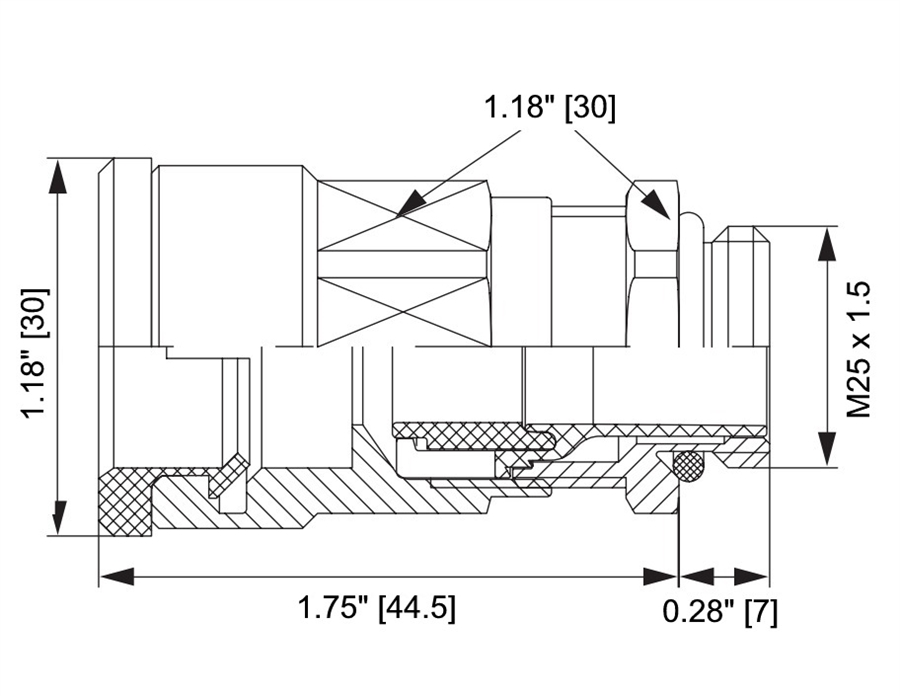

DUO25MA-BR is a nickel plated brass DUO Ms push-in, partially rotatable conduit fitting designed to combine strain relief and conduit connection in one fitting. It uses a M25 x 1.5 thread, fits nominal conduit size DN 17, and accepts cable outside diameters from .51" - .71" (13 - 18 mm).M25 x 1.5DN 17IP68 Cable Side
This Sealcon DUO fitting is built for enclosure cable entries, machine wiring, and flexible conduit transitions where cable sealing, strain relief, and conduit routing need to be handled at the same connection point.
💡 Dual-Function Cable Entry
Strain Relief Side: Rated IP68 for protection from dust and continuous immersion in water.
Conduit Side: Rated IP54 for protection from harmful dust deposits and splashing water.
Rotatable Design: Partially rotatable body helps align conduit routing during installation.
Key Features
- DUO push-in design: combines strain relief and conduit fitting functions
- M25 x 1.5 thread: made for compatible enclosure openings
- .51" - .71" (13 - 18 mm) cable O.D. range: fits the listed cable diameter range
- DN 17 conduit fit: matches nominal conduit size 17
- Nickel Plated Brass: durable construction for industrial installations
- -40°C to 100°C operating range: suitable for demanding environments
- Compatible with multi-hole inserts: supports flexible cable entry configurations
- Includes O-ring for the threaded side.
- Sold individually: locking nut sold separately
✅ Why Choose This DUO Fitting?
This fitting reduces the need for separate cable gland and conduit components by bringing
cable strain relief, cable-side sealing, and conduit entry into one compact assembly.
Applications
The DUO25MA-BR is useful for industrial wiring layouts that require a sealed cable entry and conduit transition:
- Control cabinet and enclosure cable entries
- Machine wiring with flexible conduit routing
- Sensor, actuator, and automation cable protection
- Panel wiring where strain relief is required
- Industrial equipment using multi-hole insert configurations
⚠️ Important Installation Info
Locking nut sold separately.
Verify cable diameter and conduit DN size before installation.
IP ratings apply to the listed fitting sides and depend on proper installation.
Performance Benefits
- Combines cable strain relief and conduit entry in one fitting
- Helps protect cable entry points from dust and water exposure
- Supports cleaner cable routing inside and outside the enclosure
- Partially rotatable design simplifies conduit positioning
📚 Product Matching Tips
Match the opening:
→ Use the thread and clearance hole dimensions before drilling or selecting a knockout.
Match the cable and conduit:
→ Confirm both the cable O.D. range and nominal conduit DN size.
🔎 Cross Reference
Also known as
Hummel 1.547.2517.50.
