Sealcon CD48AP-BK high quality black nylon cord grips are designed for the toughest applications. Also known as Hummel 1.597.4899.01 (insert Hummel 1.089.4899.19). Sold Individually.
Locking nut & O-Ring sold separately

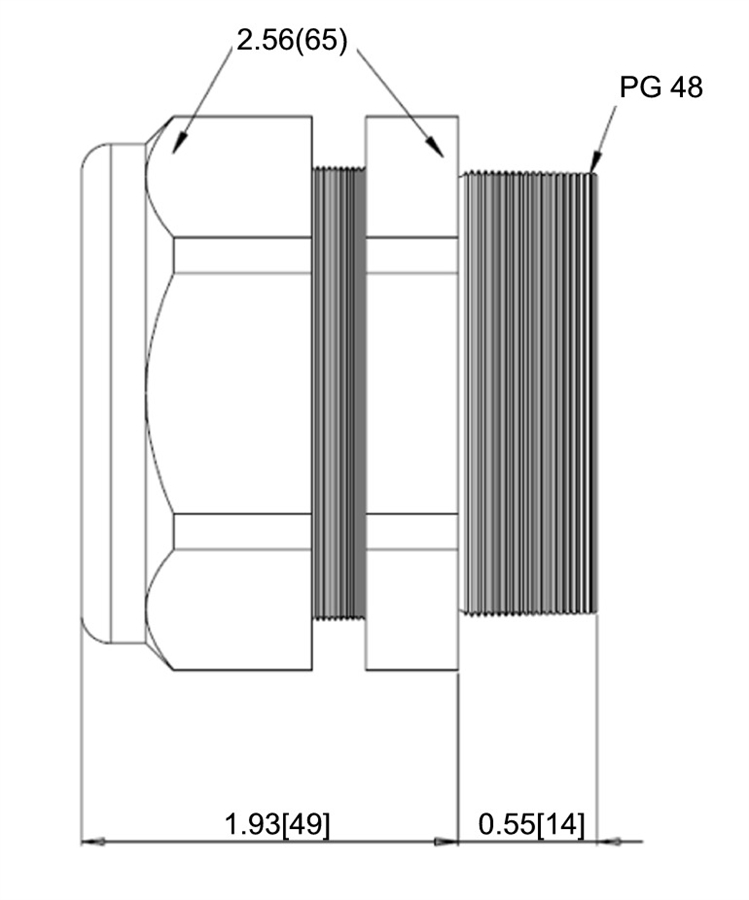

Specifications
- Thread Size: PG 48
- Through Hole Diameter: 2.34" (59.4 mm)
- Body Length: 1.93" (49 mm)
- Thread Length: .55" (14 mm)
- Wrench Flat Dome: 2.56" (65 mm)
- Wrench Flat Body: 2.56" (65 mm)
- Number of Holes: N/A
- Hole Diameter: N/A
Features
- Nylon 6/6 Material with Elastomer Seal
- Rated IP 65 (NEMA 4x)
- Achieving IP 68 (NEMA 6) is possible, provided that there is an ideal fit
- Flame Protected to UL 94
- Halogen and Phosphorous Free
- Vibration Resistant Dome
- Resists salt water, acids, alkalis', gasoline & oils.
- Durable Rugged Construction
- RoHS & Deca BDE, CSA approval
Approvals
- RoHS Compliance
- Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of
Chemicals
- Waste Electrical and Electronic Equipment Directive
- UL Registered
- EAC
- CE
- German Lloyd
- V0 UL94 Rated / Approved
Sealcon PG 48 Nylon / Plastic Multi-hole Cord Grips, Strain Relief Fittings or Cable Glands are used in almost any industry and are made to attach cable or wire to various applications. This fitting provides a NEMA 4x (IP 65) rating. To achieve this rating, the cable cannot be less than 80% of the diameter of the hole. There also cannot be more than .04" (1 mm) of difference between the diameter of the cable and the diameter of the hole. It is possible to reach the NEMA 6 (IP 68) submersible rating, provided that there is an ideal fit. The ACME thread on the CD48APBK dome top is self locking and makes sure that the overlapping splines apply an even seal. This keeps the form seal from being pulled out of the fitting & provides pull-out protection for your cable so it does not cause damage.
|
|
|
