Sealcon CD21NA-MZ 3/4" NPT Dome .51" - .71" (13 - 18 mm) O.D. Cord Grip w/ Clamp

Sealcon CD21NA-MZ
Sealcon CD21NA-MZ 3/4" NPT Dome .51" - .71" (13 - 18 mm) O.D. Cord Grip w/ Clamp



Alternative Views:


Price: $23.92
MFG P/N: CD21NA-MZ
MFG: Sealcon
Ships From: Eastlake, OH
Weight (lbs): 0.15

Quantity in Stock :122


Availability:
In Stock
Product Code: CD21NA-MZ
Qty:


Description

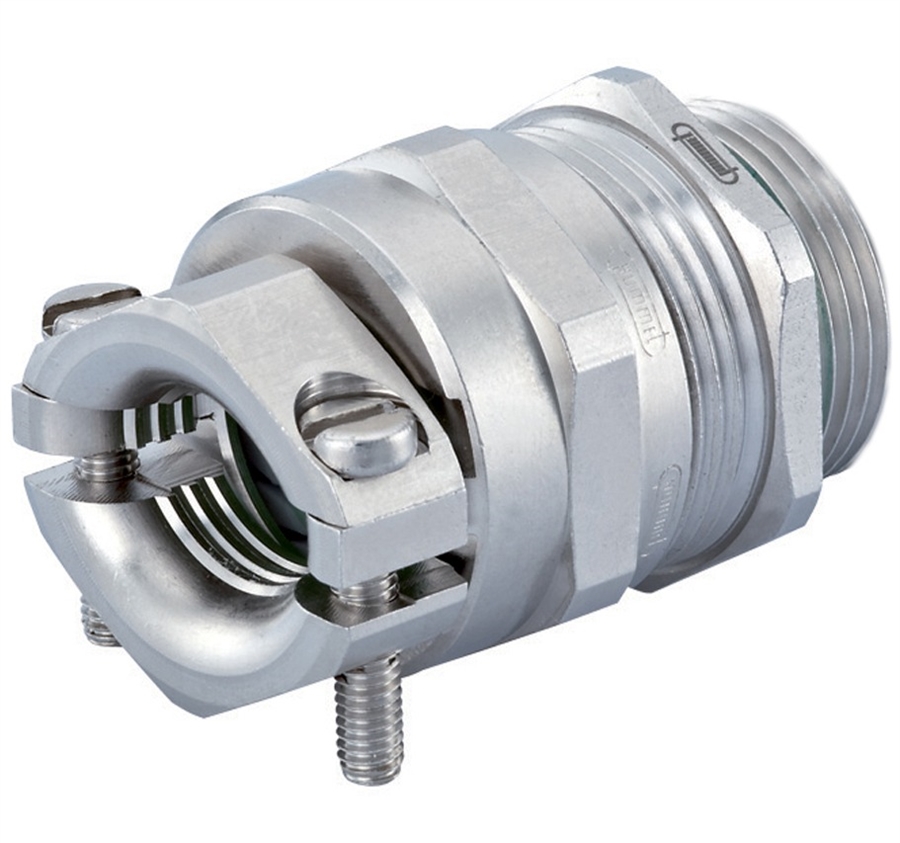

Sealcon CD21NA-MZ high quality nickel plated brass liquid tight strain relief cord grips with cable clamps are designed for the toughest applications. Also known as Hummel 1.690.3400.70. Sold Individually. Locking nut sold separately

Specifications

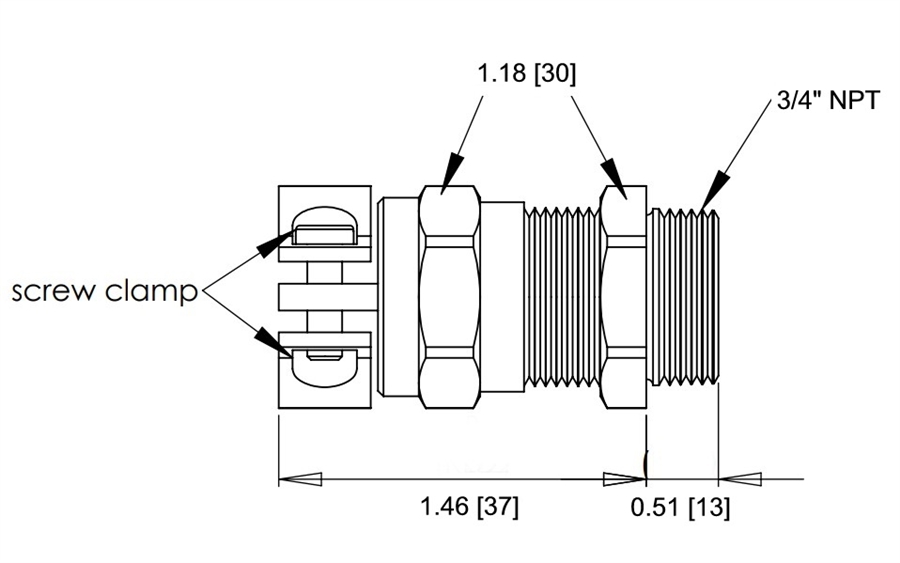

  • Thread Size: 3/4" NPT
  • Cable O.D. Range: .51" - .71" (13 - 18 mm)
  • Through Hole Diameter: 1.05" (26.7 mm)
  • Body Length: 1.46" (37 mm)
  • Thread Length: .51" (13 mm)
  • Wrench Flat Dome: 1.18" (30 mm)
  • Wrench Flat Body: 1.18" (30 mm)

Features

  • Nickel Plated Brass Material with Buna-N Seal
  • Operating Temperature: -40 C to 100 C (-40 F to 212 F)
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
  • 150 psig (10 bar) Pressure Rating
  • High Performance Clamp provides additional pull-out resistance
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL& CUL Listed
  • CSA
  • EAC
  • CE
  • German Lloyd

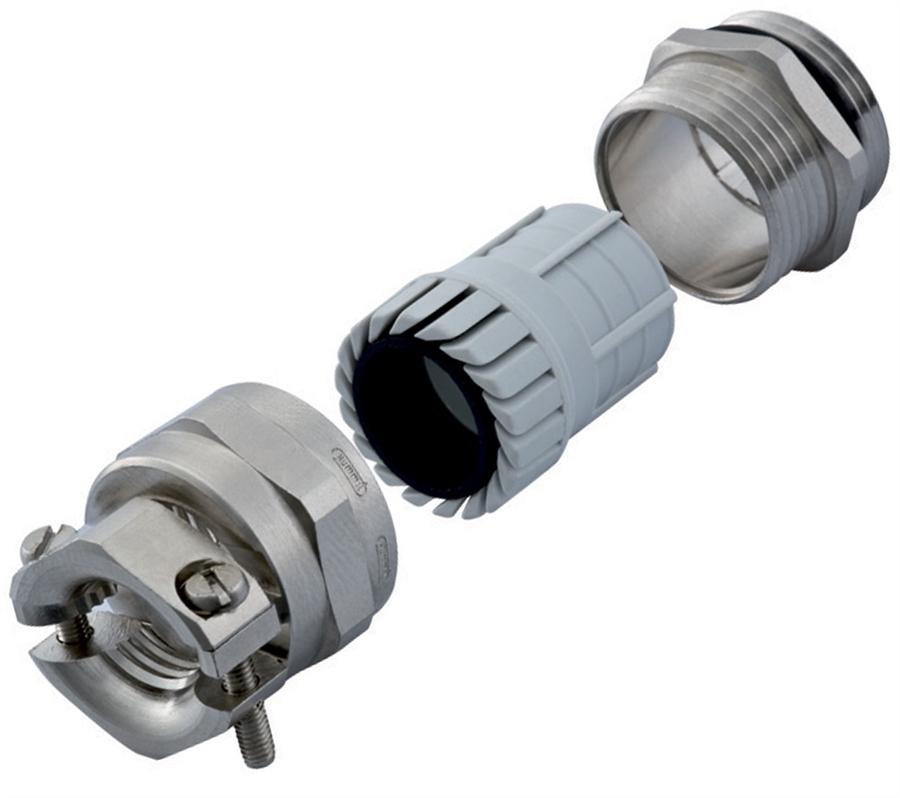

Sealcon 3/4" NPT Nickel Plated Brass Cord Grips, Strain Relief Fittings or Cable Glands are used to help customers in all industries connect their cable or wire to their applications. This fitting provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Sealcon patented overlapping clamping splines, recessed custom grommets help protect your cable from damage and the elements. The CD21NAMZ fitting provides a substantial amount of Pull-out resistance by applying concentric force on all points of the cable.

3/4" NPT Brass Strain Relief Fitting with Cable Clamp
