Saginaw Screw Cover Enclosure, 6.13" x 4" x 3"

Saginaw Screw Cover Enclosure, 6.13" x 4" x 3"

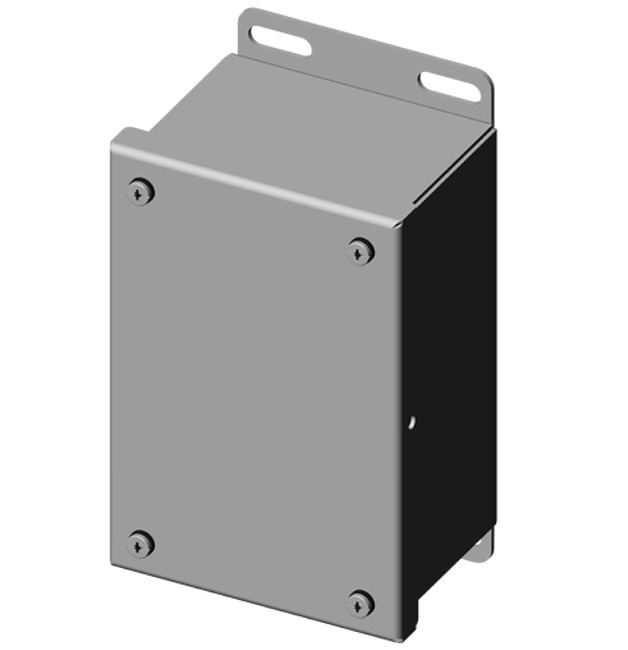

Saginaw SCE-604SC Screw Cover Enclosure, 6.13" x 4" x 3"



Alternative Views:


Price: $50.73
MFG P/N: SCE-604SC
MFG: Saginaw Control & Engineering
Weight (lbs): 3



Availability:
In Stock
Product Code: SCE-604SC
Qty:

Description


Saginaw Control & Engineering SCE-604SC is a screw cover enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and measures 6.13" H x 4" W x 3" D (155.702mm x 101.6mm x 76.2mm). Can be used as a junction box, terminal enclosure, or control box.

  • Continuously welded & ground smooth seams
  • No holes or knockouts
  • Cover screws thread into sealed wells
  • Gasket is oil resistant
  • Standoffs for mounting sub-panels provided (sub-panels sold separately)
  • Mounting provisions are located on the back, at the top and bottom
  • IS4 industry standards - NEMA Type 3R, 4, 12 and Type 13, UL Listed Type 3R, 4 and 12, CSA Type 3R, 4 and 12, IEC 60529, IP 66 (Special Instructions apply for IS4 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door)

6.13" x 4" x 3" Enclosure with Screw Cover Saginaw SCE-604SC
