Saginaw SCE-4PB Push Button Enclosure, 4 Position, 30.5mm, 1x4

Saginaw SCE-4PB Push Button Box, 4 Position, 30.5mm
Saginaw SCE-4PB Push Button Enclosure, 4 Position, 30.5mm, 1x4

Alternative Views:
Price: $82.63
Note: Ships in 5-7 business days, contact us to confirm current ship date
MFG P/N: SCE-4PB
MFG: Saginaw Control & Engineering
Weight (lbs): 5



Availability: In Stock
Product Code: SCE-4PB
Qty:

Description


Saginaw Control & Engineering SCE-4PB is a 4 position push button enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and 30.5mm pushbutton entrances in a 1x4 configuration. Used for keeping oil-tight push buttons, switches, and pilot lights protected from dirt & moisture.

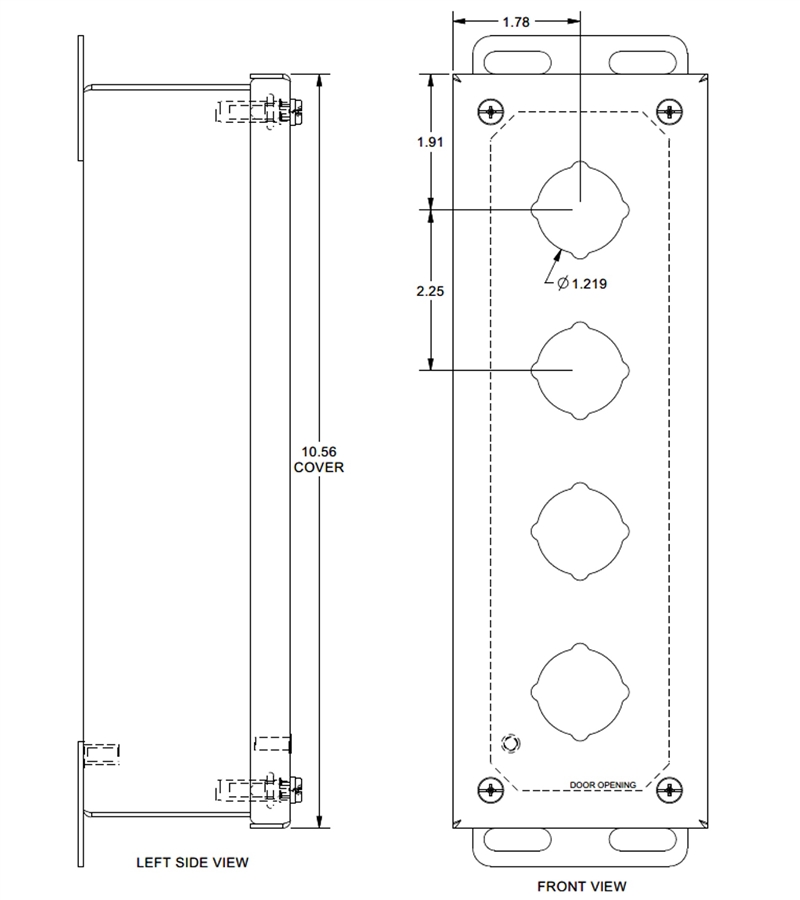

  • 10.25" H x 3.25" W x 2.75" D (260.35mm x 82.55mm x 69.85mm)
  • Seams are continuously welded
  • Cover screws thread into sealed wells
  • Accepts any brand of oil-tight push buttons, switches, or pilot lights
  • 4 way standard push button entrances
  • Gasket is oil & water resistant
  • Welded mounting provision located on the back at the top and bottom
  • IS2 industry standards - NEMA Type 4, 12 and Type 13, UL Listed Type 4 and 12, CSA Type 4 and 12, IEC 60529, IP 66
