Saginaw Control & Engineering Enviroline Series SCE-30EL3012LPPL is a single door enclosure with 3 point hardware. It is made from 0.075" carbon steel with an ANSI-61 gray powder coating. Has a 3 point latching mechanism. Houses electrical components, instruments, and controls for indoor or outdoor applications. Made for wall mounting

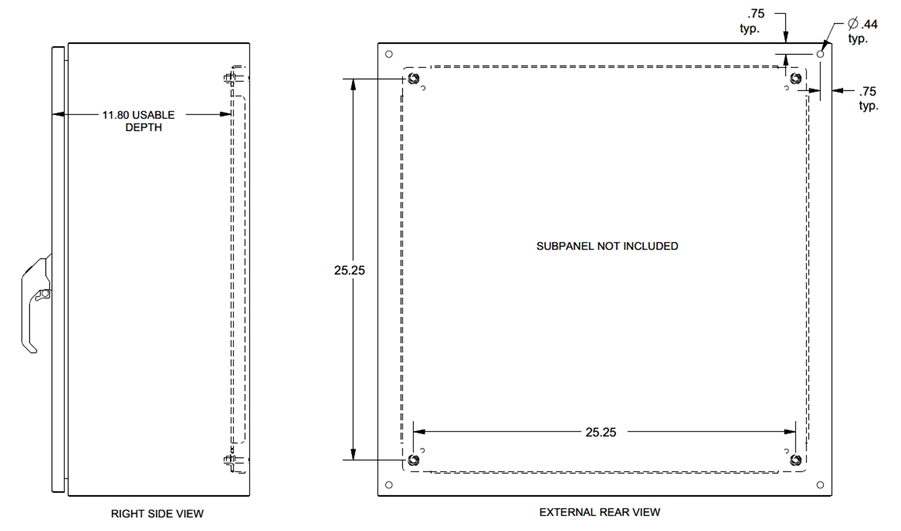

- 30" H x 30" W x 12" D (762mm x 762mm x 304.8mm)
- Seams are continuously welded & ground smooth
- Flange trough collar around door opening
- Collar studs included for mounting sub-panel (sold separately)
- Mounting holes in the back for wall mounting
- Hinges are concealed
- Door is removable
- Keylock/Padlock handle is black die cast zinc
- Ground stud on door & body
- Includes mounting hardware, sealing washer & hole plugs
- IS4 industry standards - NEMA Type 3R, 4, 12 and Type 13, UL Listed Type 3R, 4 and 12, CSA Type 3R, 4 and 12, IEC 60529, IP 66 (Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R. Instructions are located on the enclosure door)
Saginaw SCE-30EL3012LPPL 30" x 30" x 12" Single Door Enclosure
|
|
|
 |
|
 |
|
