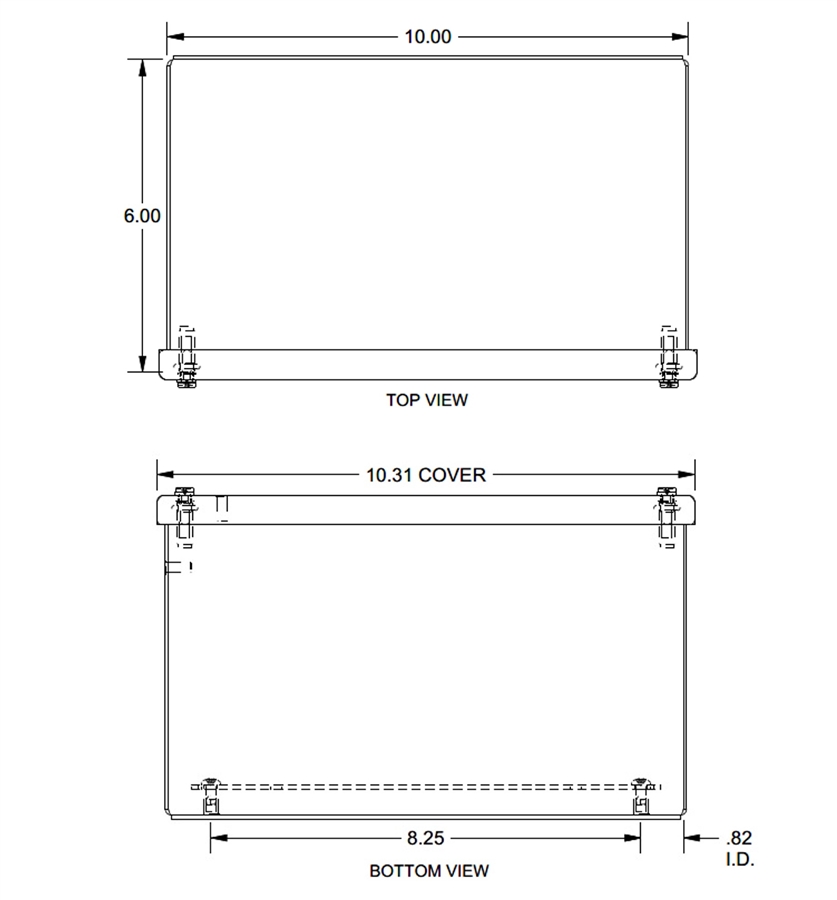

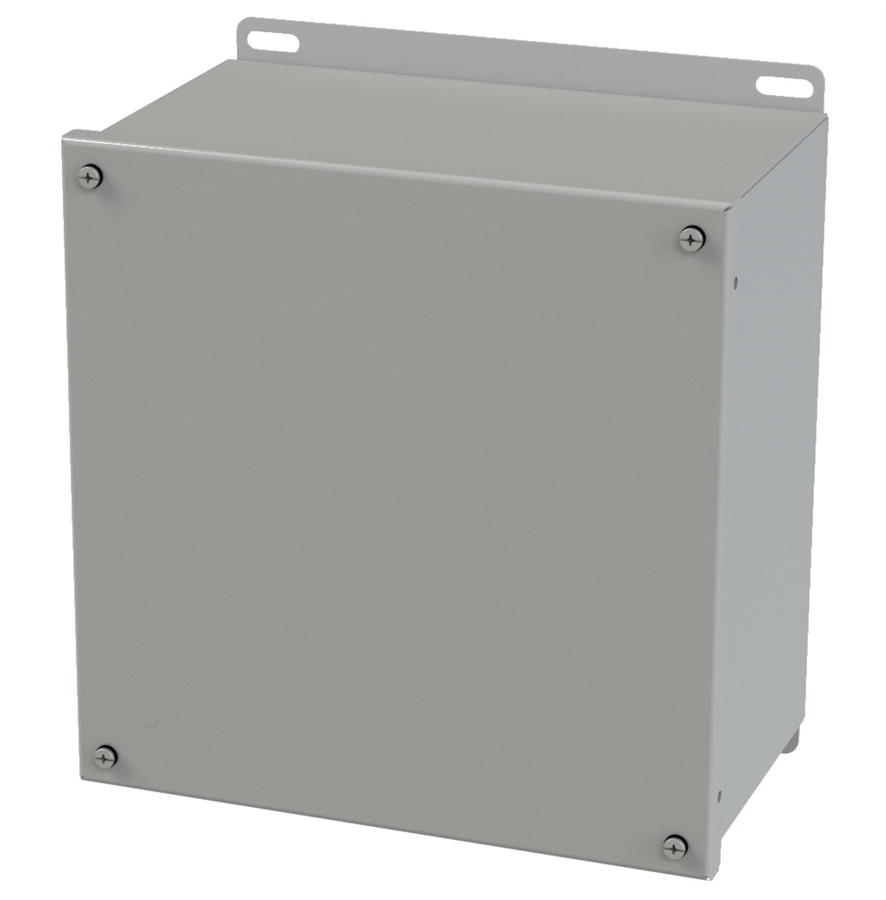

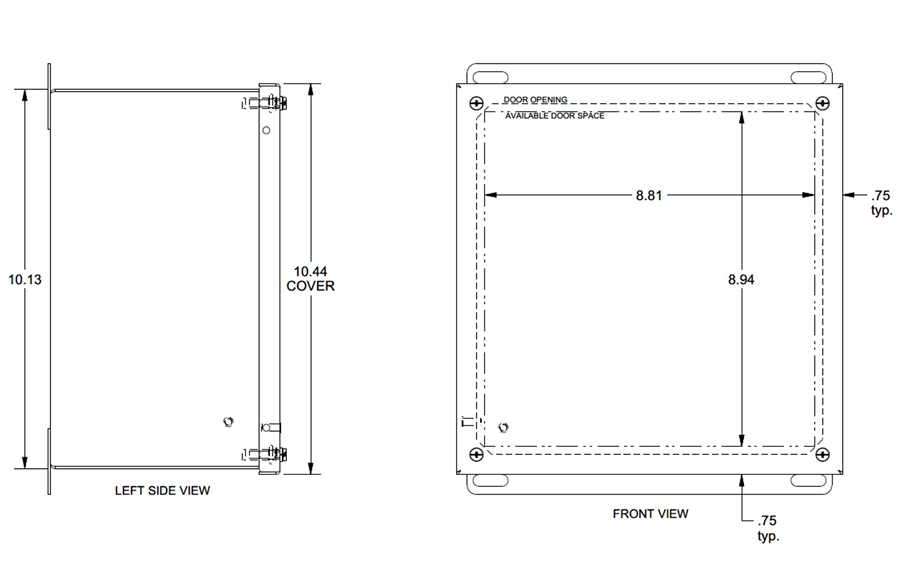

Saginaw Control & Engineering SCE-10106SC is a screw cover enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and measures 10.13" H x 10" W x 6" D (257.302mm x 254mm x 152.4mm). Can be used as a junction box, terminal enclosure, or control box.
- Continuously welded & ground smooth seams
- No holes or knockouts
- Cover screws thread into sealed wells
- Gasket is oil resistant
- Standoffs for mounting sub-panels provided (sub-panels sold separately)
- Mounting provisions are located on the back, at the top and bottom
- IS4 industry standards - NEMA Type 3R, 4, 12 and Type 13, UL Listed Type 3R, 4 and 12, CSA Type 3R, 4 and 12, IEC 60529, IP 66 (Special Instructions apply for IS4 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door)
|
|
|
 |
|
 |
|
