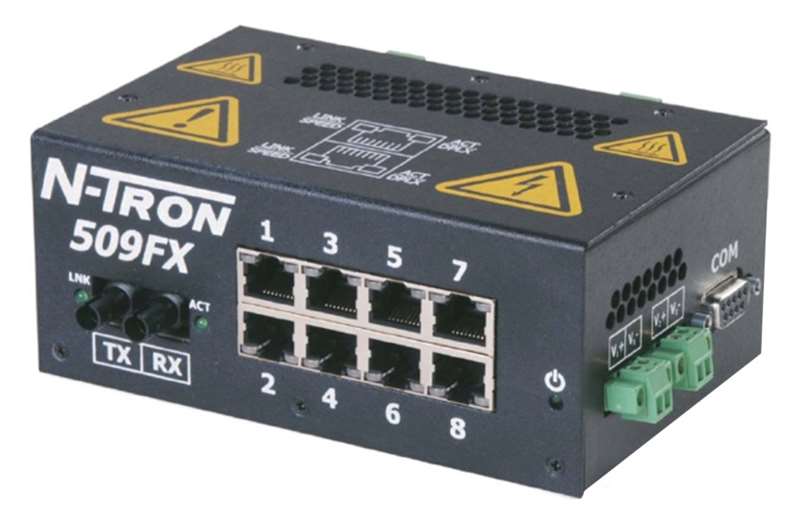

The Red Lion N-Tron® Series 509FX-ST Industrial Ethernet Switch is an unmanaged 9-port switch designed for demanding applications. Equipped with one multimode fiber optic port using an ST connector, it supports transmission distances up to 2 kilometers. The switch also includes eight 10/100BaseTX RJ45 ports. The 509FX-ST is built to deliver reliable Ethernet communication in harsh environments such as manufacturing, energy, transportation, and surveillance systems.
PRODUCT FEATURES
- Full IEEE 802.3 and 1613 Compliance
- NEMA TS1/TS2 Compliance
- (8) 10/100 BaseTX RJ-45 Ports
- (1) 100BaseFX Port, ST
- Auto Sensing 10/100BaseTX, Duplex, and MDIX
- Store-and-forward Technology
- Up to 1.8 Gb/s Throughput
- Rugged Industrial DIN-Rail Enclosure
- Redundant Power Inputs (10-30 VDC)
- Bi-Color LED's For Link, Speed, Activity & Duplex Status
The N-TRON 509FX-ST is designed to operate in industrial environments. It is housed in a rugged steel enclosure that can be DIN-RAIL or Panel Mounted, and an optional rack mount kits is also available. The 509FX-ST also comes standard with extended temperature rating, extended shock and vibration specs, redundant power inputs, and a high MTBF (greater than2M hours). The N-TRON 509FX-ST requires no setup unless the advanced port functions are utilized. The eight 10/100BaseTX ports are auto sensing and auto configuring. Each copper port is automatically negotiated for maximum speed and performance by default. The fiber optic port supports full 200Mb/s communications via 100BaseFX. Bi-color LED's are provided to display the link status, link speed and activity of each port as well as power on/off status. The N-TRON 509FX-ST uses "state of the art" IEEE 802.3 Fast Ethernet 10/100BaseTX switching technology. This eliminates network collisions and increases network determinism. 4,000MAC addresses are supported enabling sophisticated and complex network architectures. A high speed processor and backplane allows wire speed capability on all ports simultaneously.
Red Lion N-Tron Series 509FX User Manual
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Additional Product Information
Switch Properties
Number of MAC Addresses: 4,000
Aging Time: 300
Latency Typ.: 2.1 µs
Switching Method: Store & Forward
Physical
Height: 2.27" (5.76 cm)
Width: 5.45" (13.85 cm)
Depth: 3.44" (8.74 cm)
Weight: 1.6 lbs (0.8 kg)
Din-Rail: 35mm
Fiber Length: 2km
Electrical
Redundant Input Voltage: 10-30V DC
Input Current: 260 mA@24V
BTU/hr: 21.3@24V DC
Inrush: 8.5Amp/0.7ms@24V
Environmental
Operating Temperature: -40 C to 85 C
Storage Temperature: -40 C to 85 C
Operating Humidity: 10% to 95%
(Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Shock and Vibration (bulkhead mounting)
Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200Hz, Triaxial
Reliability
MTBF: >2Million Hours
Network Media
10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable
100BaseFX
Multimode: 50-62.5/125 µm
Connectors
10/100BaseTX: Eight RJ-45 Copper Ports
100BaseFX: One ST Duplex Port
Serial Configuration Port
Com Parameters: 9600,n,8,1
|
|
|
|
|
|
|
