Menics PWEF-101-R 1 Stack LED Tower Light, Red, Flashing, 12V

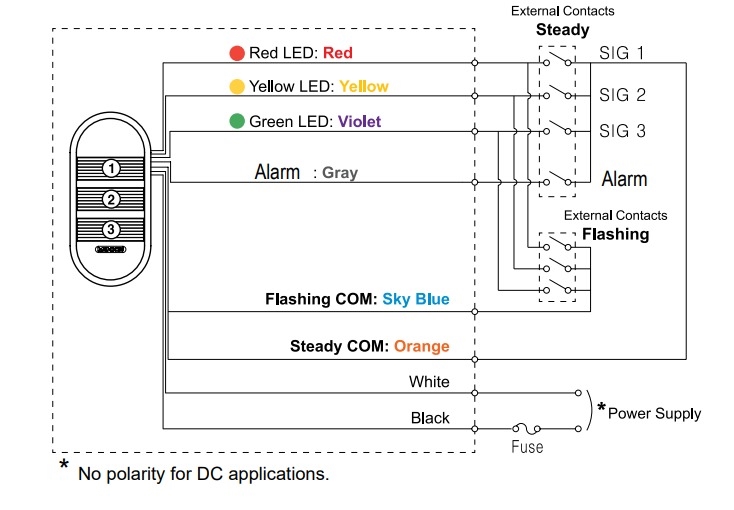

The Menics PWEF-101-R 1 stack LED tower light has a low profile white plastic housing and is rated for 12V. It has a red lens, with a steady & flashing light. Designed for wall mounting, either horizontally or vertically. The signal light itself comes pre-wired with 800 mm (31.5") lead wire. Provides an equal brightness at any angle due to the reflective structure inside the lens. Vibration & moisture resistant. Useful in situations in which a pole mounted tower light would be impractical. Steady or flashing mode is chosen based on wiring (see wiring diagram). Note: Wiring diagram shows version with alarm buzzer

Specifications

• Mounting- Wall Mount
• Housing Material- White Plastic
• Lens Material- Polycarbonate Resin
• Light Operation- Steady & Flashing
• Power Supply- 12V AC/DC
• Current Consumption- 0.055 Amps
• LED Colors- Red
• Number of LED Tiers- 1 Stack

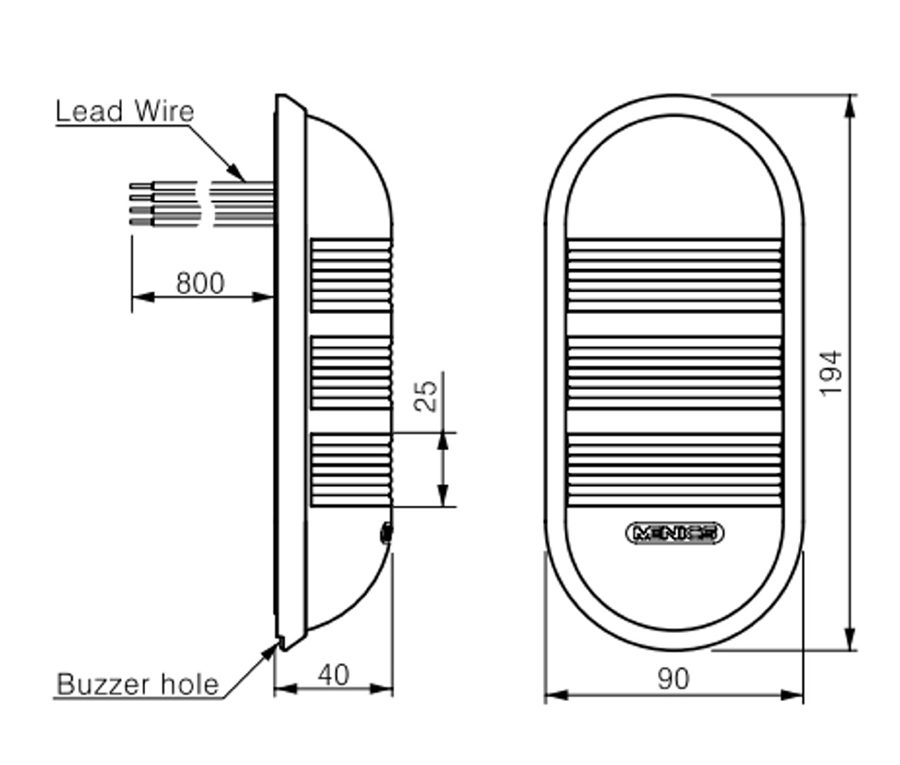

• Dimensions- 194 mm Height x 90 mm Width x 40 mm Depth (7.64" x 3.54" x 1.57")
• Buzzer- None
• Flashing Rate- 80 flashes per minute
• Vibration- 3mm @ 10-55Hz
• Ambient Temperature- -15 C to 40 C (5 F to 104 F)
• Ambient Humidity- 45-85% Relative Humidity
• Recommended Wire Size- 1007 UL / 22 AWG
• IP Protection- IP 65 (Total protection from dust and water jets in any direction)
• Approvals- UL Listed, CE, RoHS
