Menics MSP-TPS-02 Panel Mount Alarm, Terminal Type, Siren, 24V DC, White

Panel Mount Alarm, Terminal Type, Siren, 24V DC, White
Menics MSP-TPS-02 Panel Mount Alarm, Terminal Type, Siren, 24V DC, White

Alternative Views:

Price: $90.79
MFG: Menics
Weight (lbs): 1

Quantity in Stock :4

In Stock
Product Code: MSP-TPS-02


The Menics MSP-TPS-02 is a white panel mount alarm buzzer with a terminal connection and a rated voltage of 24V DC. Plays one of 3 siren sounds, depending on the connection (see diagram). Has compact housing. Front panel is rated IP 65, perfect for areas with excess dirt, dust, or moisture. The one touch terminal block makes a crimping tool unnecessary. RoHS compliant.


  • Alarm Dimensions- 110 mm Width x 88 mm Height x 115 mm Length (4.33" x 3.46" x 4.52")
  • Connection- Terminal (see MSP-LPS-02 below for model with lead wire connection)
  • Mounting- Panel Mount (see MSP-TBS-02 below for wall mount version)
  • Sound Type- 3 Channel Siren (Fire Truck, Police Car, Ambulance) - see MSP-TPM-02 below for 3 channel melody
  • Rated Voltage- 24V DC
  • Current Consumption- 0.4 Amp
  • Alarm Housing Color- White with Black Horn
  • Housing Material- ABS Plastic Body with NBR Horn
  • Max Volume- 110 decibels (1 Meter)
  • Insulation Resistance- Over 100 MOhm (500V DC mega between terminal & case)
  • Withstand Voltage- 500V AC 50/60Hz 1 min.
  • Operating Temperature- -20 C to 50 C (-4 F to 122 F)
  • Storage Temperature- -20 C to 65 C (-4 F to 149 F)
  • Operating Humidity- 45-85% Relative Humidity
  • Protection Rating- IP 65 (Total protection from dust and water jets from any direction)
  • Approvals- RoHS Compliant

Installation: The orange installation brackets on the sides are removed with a screwdriver. Insert the speaker into the panel from the front side. Reattach the installation brackets from the back side of the panel, fixing them with the included screws to keep the fixture secure in place.

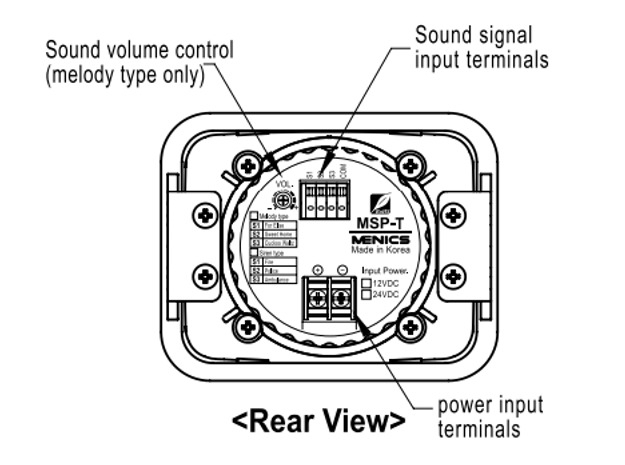

MSP series terminal connection diagram

Panel Mount 24V Ivory Terminal Connection Siren MSP-TPS-02
