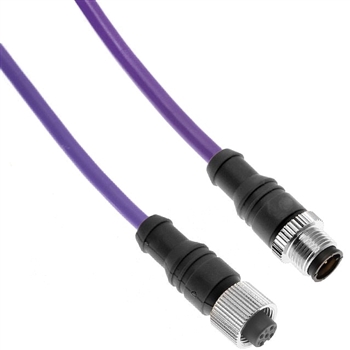

Mencom PBEC-3MFP-1M Profibus DP Cordset, 3 Pole, Male/Female Straight, 1 M

Mencom Profibus DP Cordset, Male/Female Straight - PBEC-3MFP-1M
Mencom PBEC-3MFP-1M Profibus DP Cordset, 3 Pole, Male/Female Straight, 1 M



Alternative Views:


Price: $64.34
Note: Please call or email [email protected] for alternatives
MFG P/N: PBEC-3MFP-1M
MFG: Mencom
Weight (lbs): 0.3

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: PBEC-3MFP-1M
Qty:


Description


The Mencom PBEC-3MFP-1M Profibus DP male/female straight cordset features a 3 pin insert, 22 gauge wire and 1 meter of cable. The connector body is flame resistant black PVC with violet PVC jacketed cable, gold plated copper alloy contacts & drain wire. The cable is rated at 300V and 4A. Operating temperature -40 C to 80 C (-40 F to 176 F). The Mencom Profibus DP molded extension cables have plug and play capability for an easier installation with your equipment. They are used most often for sensors and actuators in automation equipment, working through a main control unit. Rated IP 67 for dust and water protection.

Specifications

  • Body- Black PVC
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- Violet PVC jacket, Profibus DP Cable, 1 PR 22 AWG w/ Drain Wire
  • Shielding- Yes
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 22
  • Pin Count- 3
  • Cable Length- 1 meter (3.28 ft)
  • Cable O.D.- 0.335
  • Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
  • Orientation Head 1- Male Straight
  • Orientation Head 2- Female Straight
  • Coupling Thread 1- Male
  • Coupling Thread 2- Female
  • Mating Thread / Type Head- M12
  • Nut- No
  • Approvals- UL & CUL Listed

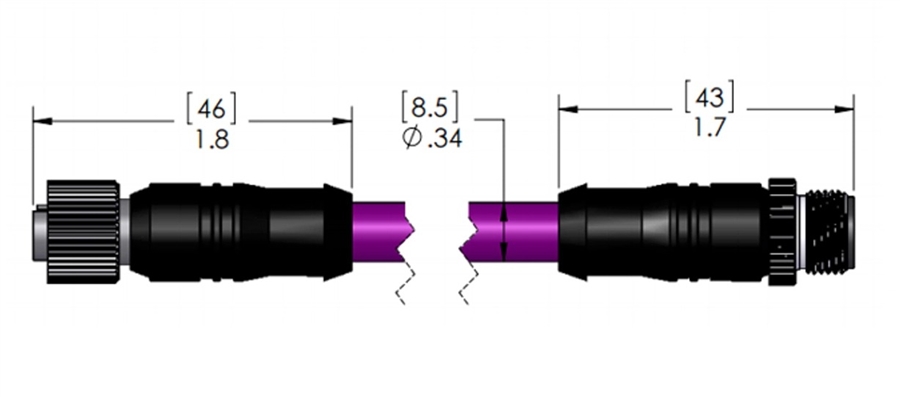

Mencom Profibus DP Male/Female M12 Cable PBEC-3MFP-1M

Additional Product Information

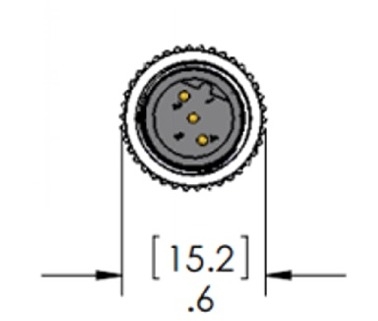

Pin #1 - Not Connected
Pin #2 - Green
Pin #3 - Not Connected
Pin #4 - Red
Pin #5 - Shield

Mencom Profibus Molded Cordset Part Number Guide
