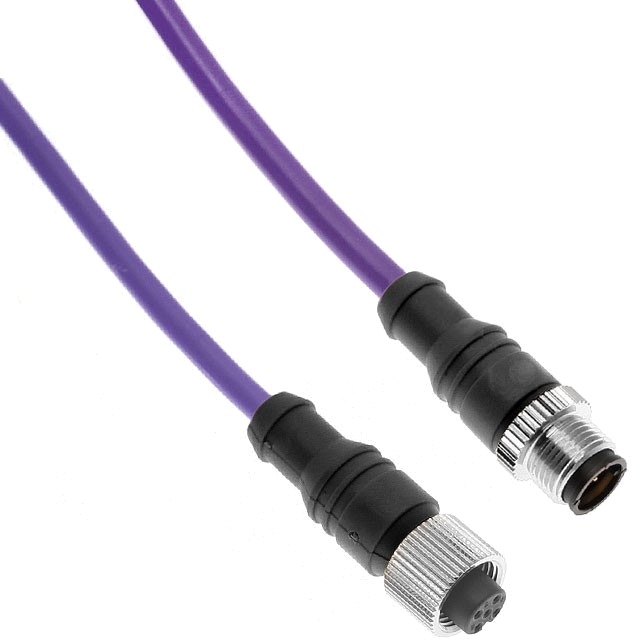

The Mencom PBEC-3MFP-10M Profibus DP male/female straight cordset features a 3 pin insert, 22 gauge wire and 10 meters of cable. The connector body is flame resistant black PVC with violet PVC jacketed cable, gold plated copper alloy contacts & drain wire. The cable is rated at 300V and 4A. Operating temperature -40 C to 80 C (-40 F to 176 F). The Mencom Profibus DP molded extension cables have plug and play abilities for an easier installation. They are used typically for sensors and actuators in automation equipment, working through a main control unit. Rated IP 67 for protection from dust particles and temporary immersion in water.

Specifications

• Body- Black PVC
• Insert- Polyamide
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Nickel Plated Brass
• Cable- Violet PVC jacket, Profibus DP Cable, 1 PR 22 AWG w/ Drain Wire
• Shielding- Yes
• Rated Voltage- 300 V
• Rated Current- 4 Amps
• Wire Gauge- 22
• Pin Count- 3
• Cable Length- 10 meter (32.8 ft)
• Cable O.D.- 0.335
• Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
• Orientation Head 1- Male Straight
• Orientation Head 2- Female Straight
• Coupling Thread 1- Male
• Coupling Thread 2- Female

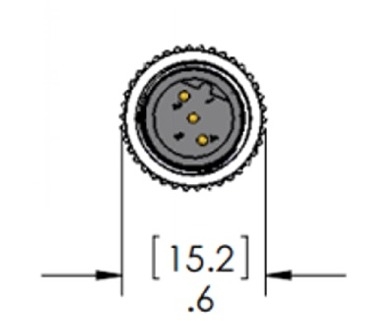

• Mating Thread / Type Head- M12
• Nut- No
• Approvals- UL & CUL Listed

Mencom Profibus DP M12 Extension Cable PBEC-3MFP-10M
