Mencom PCGU-M40 M40 0.624" - 1.092" (16 - 28 mm) O.D. Cable Gland, Gray

Mencom PCGU-M40 M40 Gray Strain Relief Fitting
Mencom PCGU-M40 M40 0.624" - 1.092" (16 - 28 mm) O.D. Cable Gland, Gray

Alternative Views:
Price: $15.79
Note: Delivery: 2-5 Business Days
MFG P/N: PCGU-M40
MFG: Mencom
Weight (lbs): 0.12

Quantity in Stock :30


Availability: In Stock
Product Code: PCGU-M40
Qty:


Description

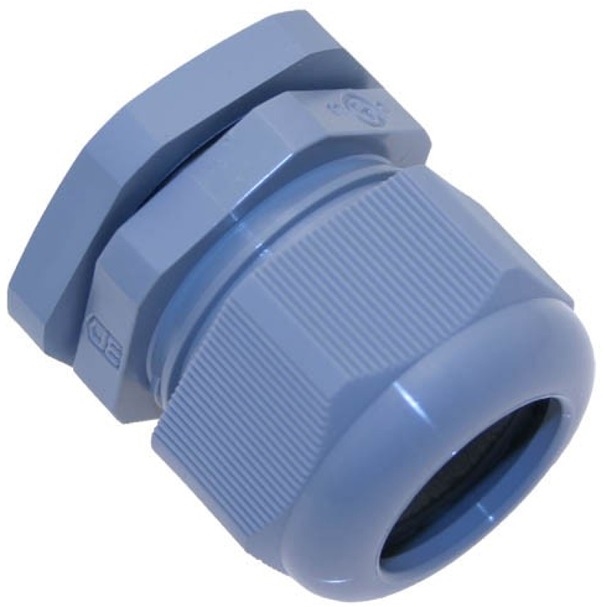

Mencom PCGU-M40 gray plastic cable gland has M40 x 1.5 Thread. Accommodates 0.624" - 1.092" (16 - 28 mm) O.D. cable. Sold Individually. This strain relief fitting has a dual grommet system to accommodate more cable sizes. For larger diameter cables, the inner grommet is removed from the outer grommet. For smaller cables, no change to the strain relief is needed. Comes with locknut & O-Ring. Rated IP 68. UL & CUL Recognized.

Specifications

  • Cord Grip Material - Polyamide
  • Inner Grommet- TPE
  • Outer Grommet- CR/NBR
  • Tightening Torque- 7.5 Nm
  • Temperature- -20 C to 100 C
  • Color - Gray

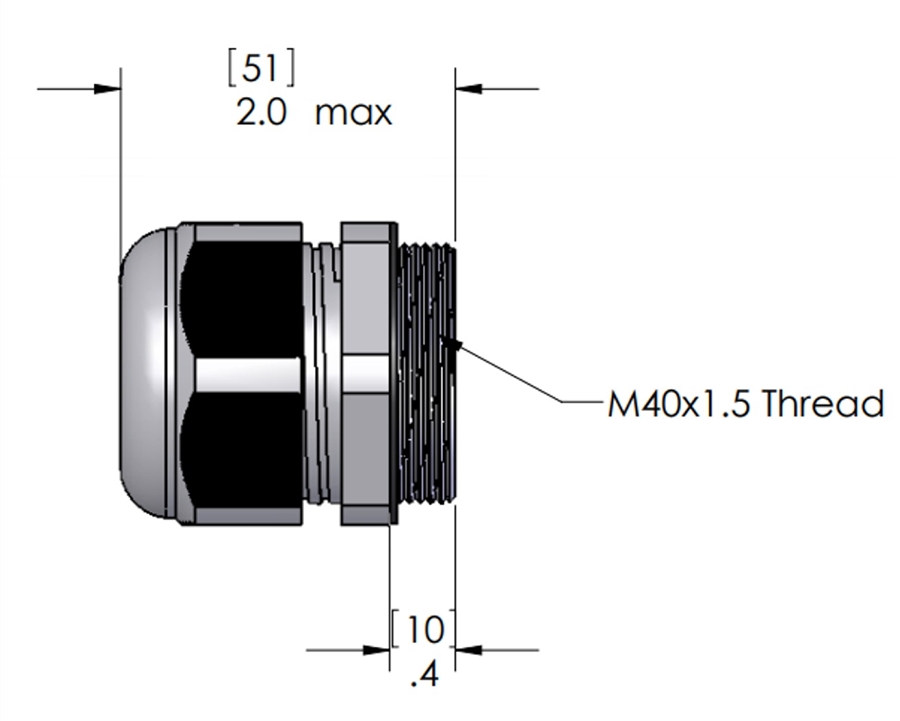

  • Mounting Thread- M40 x 1.5
  • Mounting Hole Clearance- 40.2 mm
  • Gland Upper Range- 1.092" (28mm)
  • Gland Lower Range- 0.624" (16mm)
  • Nut- Yes
  • Ingress Protection- IP 68 (Total protection from dust and prolonged immersion in water)
  • Approvals- UL & CUL Recognized

Mencom M40 x 1.5 16-28mm Gray Dual Grommet Cord Grip PCGU-M40
