Mencom PCGU-M20-B M20 0.195" - 0.507" (5 - 13 mm) O.D. Cable Gland, Black

Mencom PCGU-M20-B M20 Black Strain Relief Fitting
Mencom PCGU-M20-B M20 0.195" - 0.507" (5 - 13 mm) O.D. Cable Gland, Black

Alternative Views:
Price: $2.54
Note: Please call or email [email protected] for alternatives
MFG P/N: PCGU-M20-B
MFG: Mencom
Weight (lbs): 0.0114

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: PCGU-M20-B
Qty:


Description


Mencom PCGU-M20-B black plastic cable gland has M20 x 1.5 Thread. Accommodates 0.195" - 0.507" (5 - 13 mm) O.D. cable. Sold Individually. This strain relief fitting has a dual grommet system to accommodate more cable sizes. For larger diameter cables, the inner seal needs to be removed from the outer seal. For smaller cables, no change to the strain relief is needed. Comes with locknut. An O-Ring is not needed for this size. Rated IP 68. UL & CUL Recognized. Note: PG 16 cable gland pictured

Specifications

  • Cord Grip Material - Polyamide
  • Inner Grommet- TPE
  • Outer Grommet- CR/NBR
  • Tightening Torque- 2.7 Nm
  • Temperature- -20 C to 100 C
  • Color - Black

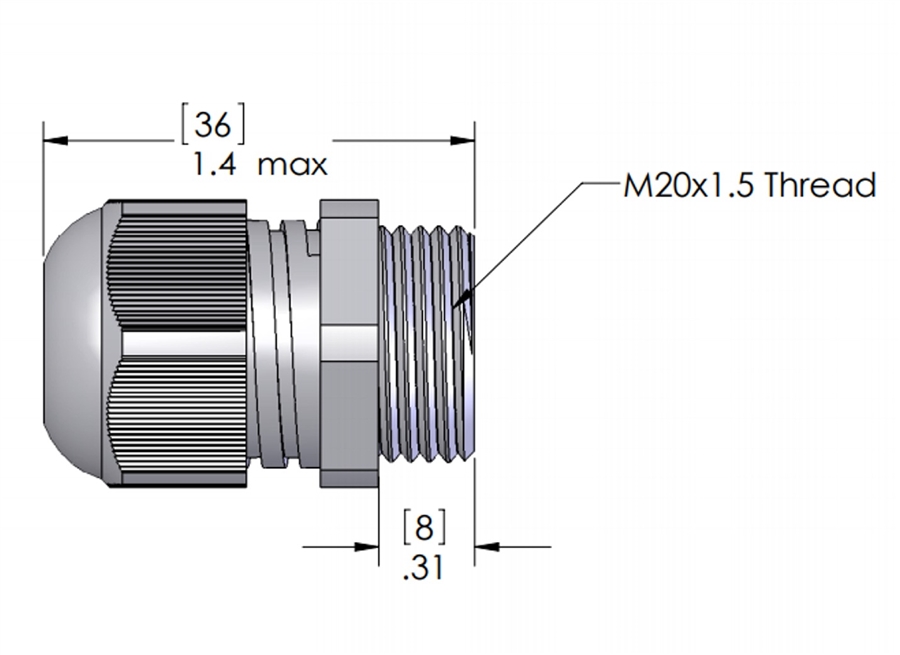

  • Mounting Thread- M20 x 1.5
  • Mounting Hole Clearance- 20.2 mm
  • Gland Upper Range- 0.507" (13mm)
  • Gland Lower Range- 0.195" (5mm)
  • Nut- Yes
  • Ingress Protection- IP 68 (Total protection from dust and prolonged immersion in water)
  • Approvals- UL & CUL Recognized
