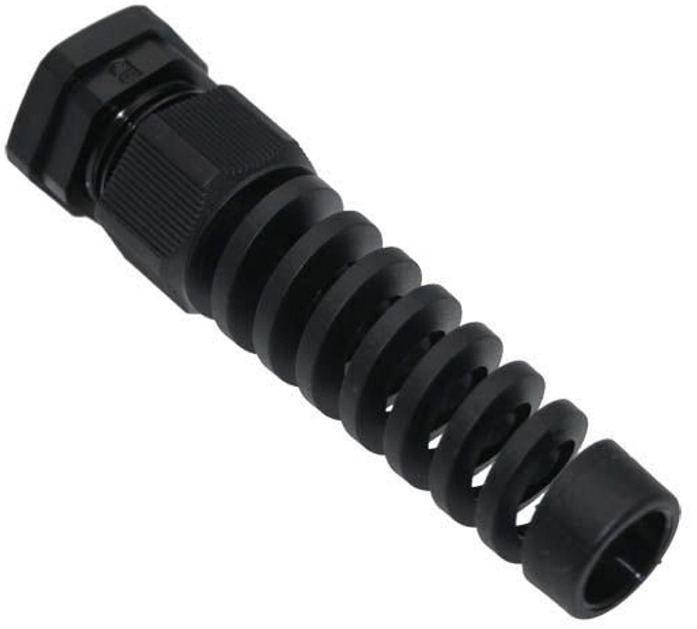

PCG-21-BS black plastic flex cable gland has PG 21 thread. Accommodates .512-.708" (13-18mm) cable. This cord grip is designed to be liquid tight and can be used with ILME enclosures and hoods. The PCG21BS can be found in many different applications and industries, as it creates a protective seal for cables that pass through enclosures. The flex nut prevents kinking and chafing of the cable. Sold Individually. Includes locknut. Rated IP 68 for protection when encountering dirt and moisture.
Temperature Range: -20 C to 100 C.
UL & CUL Recognized
- Gives strain relief for cable connections
- Tight seal keeps out dirt and moisture
- IP 68-5 BAR rating, which is similar to NEMA 6P
- Withstands up to 5 atmospheres of pressure under water
- Grommet provides the seal around cable
- No O-rings are necessary to reach an IP 68 rated seal against the enclosure
- Raised rings underneath the hex nut provide the seal
- Intended for use with round cables, do not use with flat or ribbon cables.
- UL & CUL Recognized

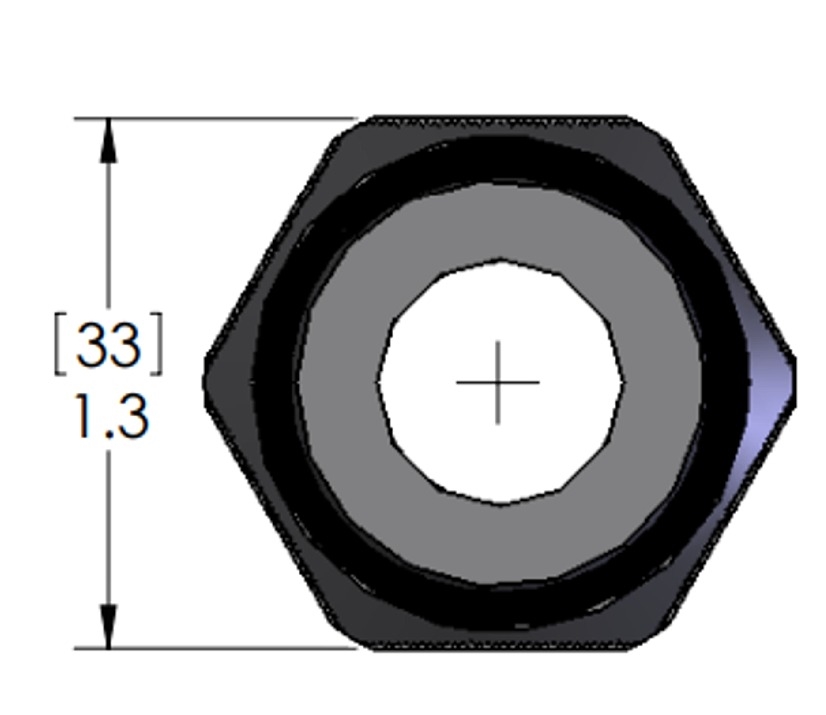

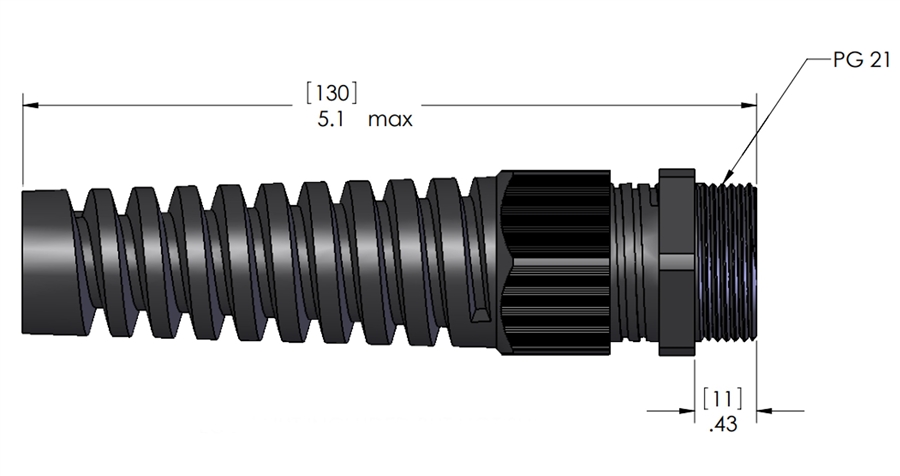

Specifications
- Cable Gland Material- Polyamide
- Grommet- Neoprene
- O-Ring- Not necessary for sizes PG 7 to PG 21
- Color- Black
- Temperature- -20 C to 100 C
- Tightening Torque- 7.5 Nm
- Mounting Hole Clearance- 28.6 mm (1.125")
- Mounting Thread- PG 21
- Gland Upper Range- 0.708"
- Gland Lower Range- 0.512"
- Nut- Yes
- Ingress Protection- IP 68 (Total protection from dust and continuous immersion in water)
- Approvals- UL & CUL Recognized
|
|
|
 |
|
 |
|
