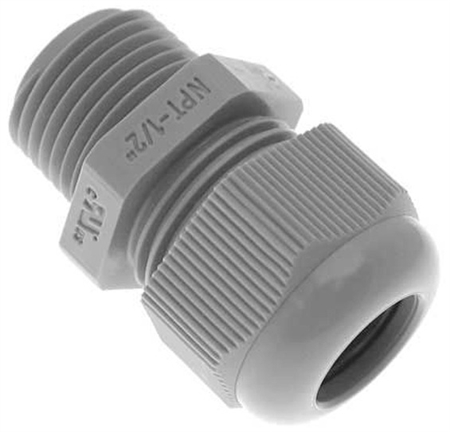

Mencom PCG-1/2Y gray plastic cable gland has 1/2" NPT thread. Accommodates 0.236 - 0.472" (6-12 mm) cable. This liquid tight cord grip is designed for easy use and works with ILME rectangular hoods. The PCG-1/2Y helps customers in a large number of applications and industries, supplying a tight seal for cables and wires that pass through enclosures. Sold Individually. Locknut sold separately. Rated IP 68 against dirt and moisture, which is comparable to NEMA 6P.
Temperature Range: -20 C to 100 C. UL & CUL Recognized
Specifications
- Cable Gland Material- Polyamide
- Grommet- Neoprene
- Color- Gray
- Tightening Torque- 3.75 Nm
- Temperature- -20 C to 100 C
- Mounting Thread- 1/2" NPT
- Gland Upper Range- 0.472" (12mm)
- Gland Lower Range- 0.236" (6mm)
- Nut- No
- Ingress Protection- IP 68 (Total protection from dust and prolonged immersion in water)
- Approvals- UL & CUL Recognized
