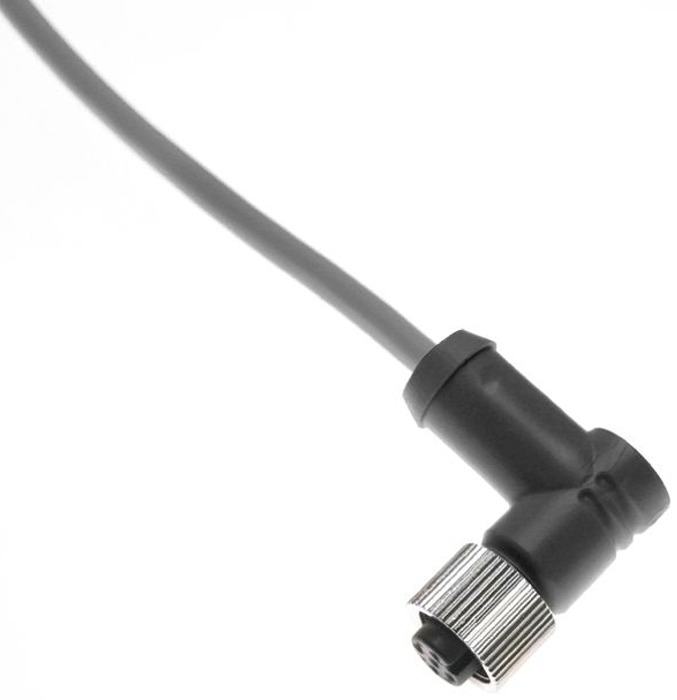

The Mencom MEC-4FP-5M-R Euro AC (M12) female right angle cordset features a 4 pin insert, 22 AWG wire and 5 meters of cable. The body is black PVC with gold plated copper alloy contacts. The gray cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MEC B-Coded cordsets use an M12 coupling nut, have a single reverse keyway, and provide plug and play solutions for various applications.
Pin #1 - Brown
Pin #2 - Blue
Pin #3 - Black
Pin #4 - Green/Yellow
Pin #5 - Not Used
Specifications
- Body- Black PVC
- Insulator- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 22/4 AWM 2661 Gray PVC Jacket
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 22
- Pin Count- 4
- Cable Length- 5 meters (16.4 ft)
- Cable O.D.- 0.2
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Female Right Angle
- Coupling Thread- Female
- Mating Thread / Type Head- M12
- Nut- No
- Approvals- UL & CUL Listed
Mencom MEC-4FP-5M 5 Meter B-Coded M12 Right Angle Molded Cable
