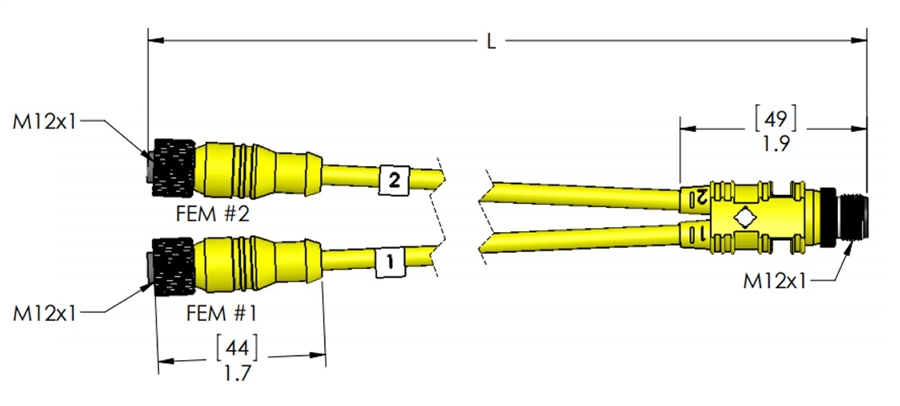

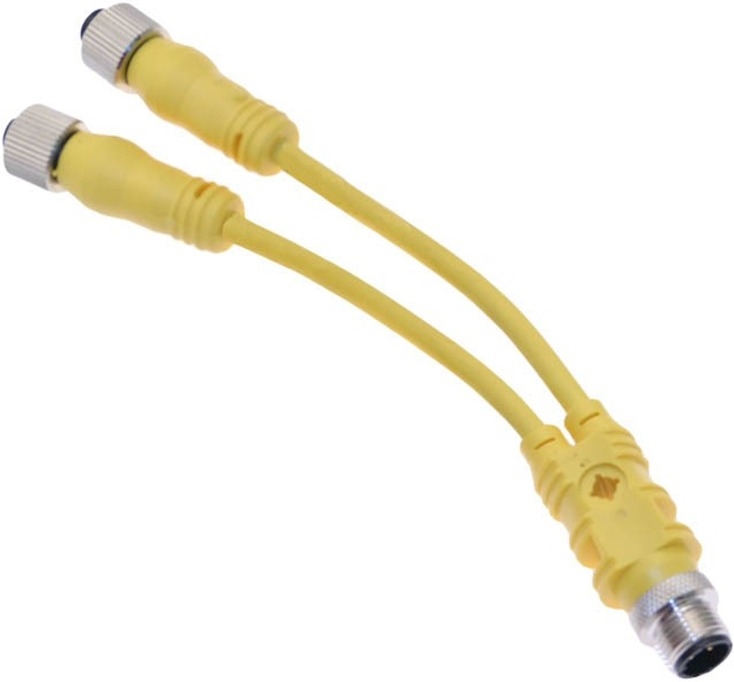

Mencom MDC-3YFF-2M M12 Cordset, 3 Pole, Male to 2 Female 'Y' Cable, 2 M

The Mencom MDC-3YFF-2M Micro DC (M12) male to 2 "Y" straight cordset features a 3 pin insert, 22 gauge wire and 2 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 60V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets feature an M12 coupling nut with a single keyway, and provide plug and play solutions for various applications.

Pin #1 - Brown
Pin #2 - Not Used
Pin #3 - Blue
Pin #4 - Black

Specifications

• Body- Yellow PVC
• Insert- Polyamide
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Nickel Plated Brass
• Cable- 22/3 AWM 2661 Yellow PVC Jacket
• Rated Voltage- 60 V
• Rated Current- 4 Amps
• Wire Gauge- 22
• Pin Count- 3
• Cable Length- 2 meter (6.56 ft)
• Cable O.D.- 0.2
• Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
• Orientation Head 1- Male Straight
• Orientation Head 2- Female Straight
• Coupling Thread 1- Male
• Coupling Thread 2- Female
• Mating Thread / Type Head- M12
• Nut- No
