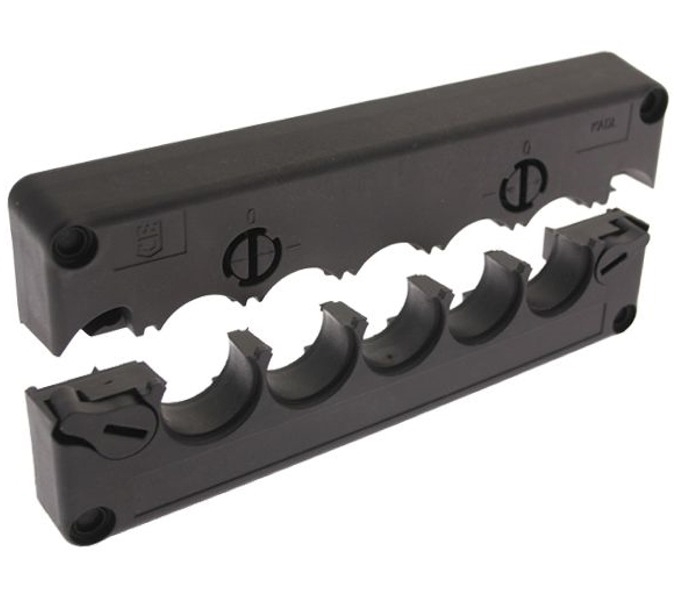

The Mencom KADL-5K cable entry frame fits 125 x 35mm panel cutouts and has 5 entries for 3-16.5mm grommets. Can be snapped through a 1.5-2mm wall thickness or screwed onto panels thicker than 2mm. This modular type system allows for easy customization. Mencom cable entry frames allow multiple cables to be inserted for an enclosure, which is perfect for smaller areas. Grommets sold separately.

Specifications

Flange- Polyamide PA6 V-0
Sealing- TPE
Number of Entries- 5
Temperature Range- -30 C to 100 C (-22 F to 212 F)
Overall Frame Dimensions- 153mm Length x 63mm Height x 32.3mm Depth (6" x 2.5" x 1.28")
IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)

Mencom Cable Entry Frame System, 5 Entries
