Mencom MIN-2MR-1-PM MIN Size I Receptacle, 2 Pole, Male, 10A

Mencom MIN Size I Receptacle - MIN-2MR-1-PM
Mencom MIN-2MR-1-PM MIN Size I Receptacle, 2 Pole, Male, 10A



Alternative Views:


Our Price: $14.48
MFG P/N: MIN-2MR-1-PM
MFG: Mencom
Weight (lbs): 0.1


Availability:
Call for Availability
Product Code: MIN-2MR-1-PM
Qty:


Description


The Mencom MIN-2MR-1-PM MIN Size I panel mount male straight receptacle features a 2 pin insert, 16 gauge wire and a 12 inch lead length. The shell is blue anodized aluminum with gold plated copper alloy contacts. The wire is rated at 600V and the PVC insulator is oil resistant. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MIN Size I (7/8") receptacles provide plug and play solutions for various applications.

Specifications

  • Shell- Blue Anodized Aluminum
  • Contacts- Gold Plated Copper Alloy
  • Insulator- Oil Resistant Yellow PVC, 105 C
  • Wire- 16 AWG UL1015
  • Rated Voltage- 600 V
  • Rated Current- 13 Amps
  • Wire Gauge- 16
  • Pin Count- 2
  • Cable Length- 1 Foot (0.3 M)
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Male Straight
  • Coupling Thread- Male
  • Mating Thread / Type Head- 7/8-16UN2
  • Mounting Style- Panel Mount
  • Nut- Yes
  • Termination- Discrete
  • Approvals- UL & CUL Listed

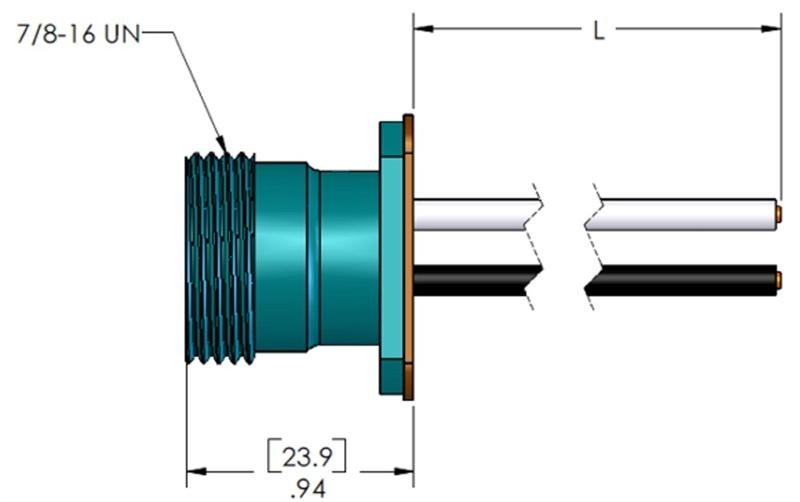

Mencom MIN-2MR-1-PM Panel Mount Male MIN Size I Receptacle

Additional Product Information
Pin #1 - White
Pin #2 - Black

Can be compatible with Brad Harrison/Molex 130013-0099

Mencom MIN Receptacle Part Number Guide
