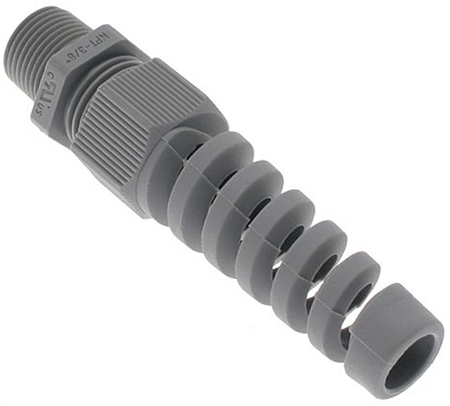

Mencom PCG-3/8RS gray plastic flex cable gland has 3/8" NPT thread. Accommodates 0.118" - 0.276" (3 - 7 mm) cable. This strain relief fitting is made to be water tight and is compatible with ILME hoods. The PCG-3/8RS is useful in a number of applications and industries in order to provide a tight seal for cables and wires that pass through enclosures. The flex nut prevents kinking and chafing of the cable. Sold Individually. Locknut sold separately. Rated IP 68 against exposure to dirt and moisture.
Temperature Range: -20 C to 100 C. UL & CUL Recognized
Specifications
- Cable Gland Material- Polyamide
- Grommet- Neoprene
- Color- Gray
- Temperature- -20 C to 100 C
- Mounting Thread- 3/8" NPT
- Gland Upper Range- 0.276" (7mm)
- Gland Lower Range- 0.118" (3mm)
- Nut- No
- Ingress Protection- IP 68 (Total protection from dust and prolonged immersion in water)
- Approvals- UL & CUL Recognized
