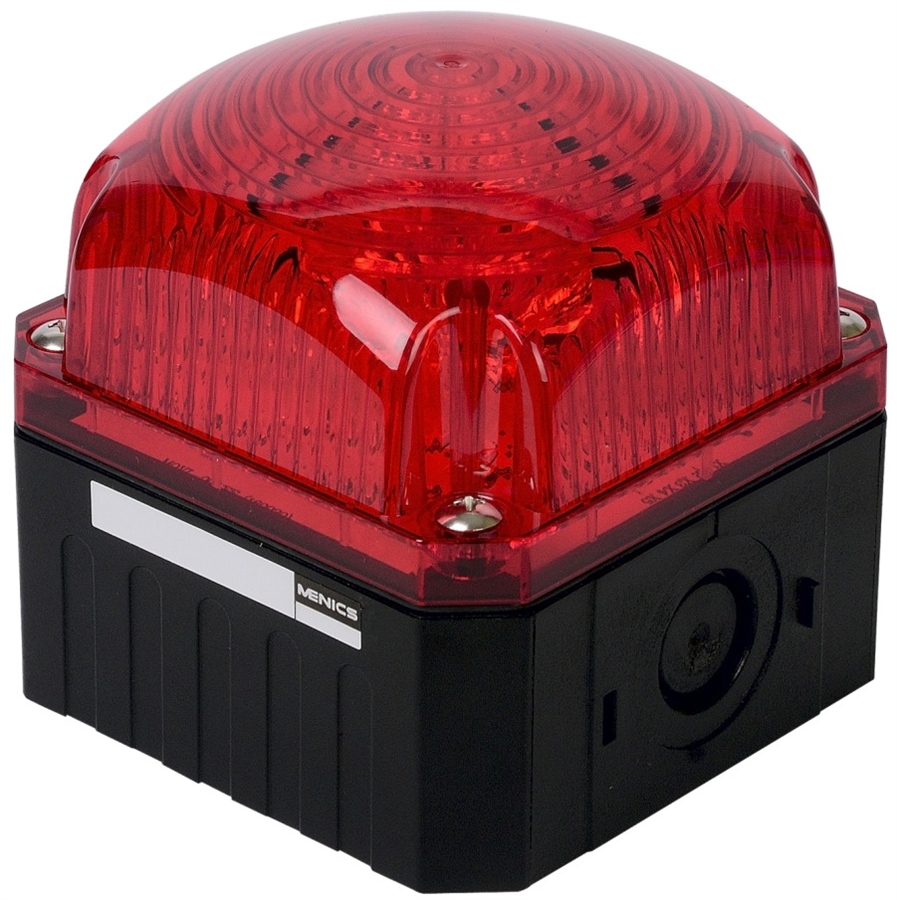

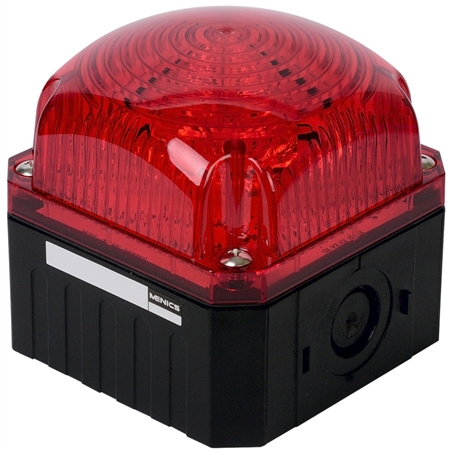

Menics MQVX-00-R 95 mm Xenon Cube Beacon Light, 12-48V, Red, Flashing

The Menics MQVX-00-R 95 mm cube style beacon light is 12-48V DC with a red lens and a flashing Xenon light. This signal light is stackable with other MQV series lights as well as MQV series buzzer alarms. Provides a bright, even light distribution. Rated IP 65.

Specifications

• Mounting- Direct mount - Screw Type (M6, 2ea)
• Light Type- Xenon Flashing
• Power Supply- 12-48V DC
• Allowable Voltage Range- 10.8-50V DC
• Lens Color- Red
• Lens Material- Polycarbonate
• Housing Material- Polyamide 6
• Dimensions- 94 mm Height x 95 mm Width x 95 mm Depth (3.7" x 3.74" x 3.74")

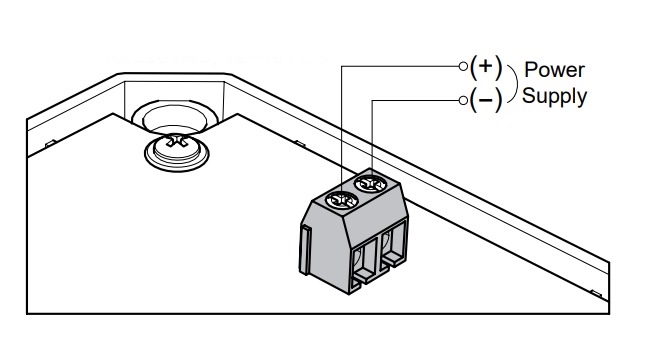

• Power Cable Insertion- Through the bottom of the main housing with a max cable diameter of 7 mm or on the side of the main housing using cable glands
• Current Consumption- 0.2 Amps
• Flash Rate- 80 times per minute
• Vibration- 0.75 mm @ 10-55Hz
• Insulation Resistance- Over 100 M Ohm min. (500VDC mega between terminals & case)
• Withstand Voltage- 500V AC 50/60 Hz 1 minute (between terminals & case)
• Ambient Temperature- -20 C to 50 C (-4 F to 122 F)
• Storage Temperature- -20 C to 70 C (-4 F to 158 F)
• Ambient Humidity- 45-85% Relative Humidity
• Connection- UL1007 / AWG 18
• IP Protection- IP 65 (Total protection from dust and water jets in any direction)
• Approvals- RoHS
