Menics M08R-24Y LED Indicator, 8mm, Round Head, 24VDC, Yellow

Menics LED Indicator, 8mm, Round Head, 24VDC, Yellow
Menics M08R-24Y LED Indicator, 8mm, Round Head, 24VDC, Yellow

Alternative Views:
Price: $5.18
Note: Delivery: 2-5 Business Days
MFG P/N: M08R-24Y
MFG: Menics
Weight (lbs): 0.08

Quantity in Stock :11


Availability: In Stock
Product Code: M08R-24Y
Qty:

Description


The Menics M08R-24Y 8mm LED indicator is 24V DC with a yellow lens and a round head. Standard type LED indicator, rated IP 60, with a chrome plated brass head that stands up to external impact & ABS plastic resin housing that is heat resistant. Terminal connection.

Specifications

  • LED Indicator Type- Standard
  • Mounting Size- 8 mm (0.31")

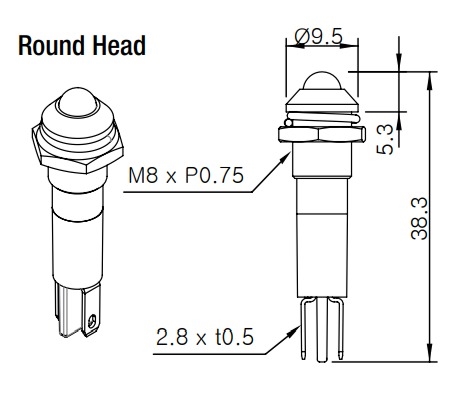

  • Dimensions- 38.3 mm Length x 9.5 mm Diameter (1.5" x 0.37")
  • Head Shape- Round (see other versions below)
  • Voltage- 24V DC
  • Color- Yellow
  • Luminous Intensity- 50 to 80 mcd
  • Operating Voltage- 21.6 to 26.4V DC
  • Operating Current- 0.02 Amps
  • Operating Temperature Range- -25 C to 60 C (-13 F to 140 F)
  • Dielectric Strength- 500V AC 50/60Hz for 1 min
  • Insulation Resistance- Max 100MOhm (@ 500V DC mega)
  • IP Protection- IP 60 (total protection from dust)
  • Approvals- RoHS, UL & CUL Recognized
