Menics M08P-24G LED Indicator, 8mm, Protrusive Head, 24VDC, Green

Menics LED Indicator, 8mm, Protrusive Head, 24VDC, Green

Alternative Views:

Price: $5.18

Note: Delivery: 2-5 Business Days
MFG P/N: M08P-24G
MFG: Menics
Weight (lbs): 0.08

Quantity in Stock :12

Availability: In Stock
Product Code: M08P-24G

Qty:

Description

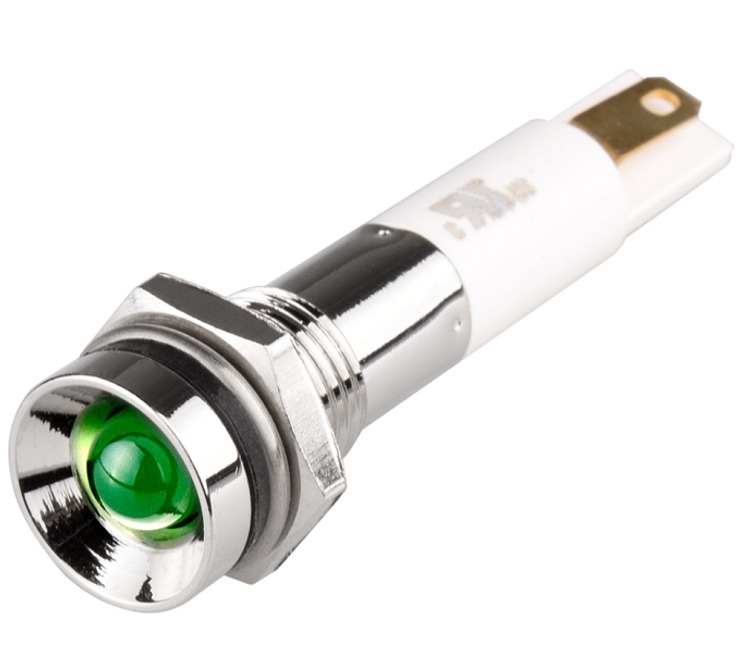

The Menics M08P-24G 8mm LED indicator is 24V DC with a green lens and a protrusive head. Standard type LED indicator, rated IP 60, with a chrome plated brass head that stands up to external impact & an ABS plastic resin housing that is heat resistant. Terminal connection.

Specifications

LED Indicator Type- Standard
Mounting Size- 8 mm (0.31")
Dimensions- 38.3 mm Length x 9.5 mm Diameter (1.5" x 0.37")
Head Shape- Protrusive (see round and flat head types below)
Voltage- 24V DC
Color- Green
Luminous Intensity- 70 to 100 mcd
Operating Voltage- 21.6 to 26.4V DC
Operating Current- 0.02 Amps
Operating Temperature Range- -25 C to 60 C (-13 F to 140 F)
Dielectric Strength- 500V AC 50/60Hz for 1 min
Insulation Resistance- Max 100MOhm (@ 500V DC mega)
IP Protection- IP 60 (indicates full protection from dust particles)
Approvals- RoHS, UL & CUL Recognized
