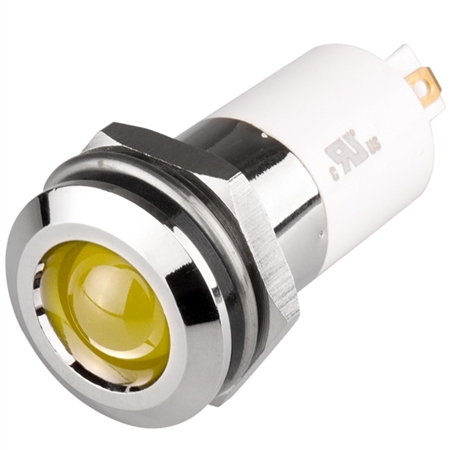

The Menics E16R-12Y 16 mm LED indicator is 12V DC with a yellow lens and a round head. It's a standard type LED indicator, rated IP 67, with an impact resistant chrome plated brass head & heat resistant ABS plastic resin housing. Terminal connection.
Specifications
- LED Indicator Type- Standard
- Mounting Size- 16 mm (0.63")
- Dimensions- 42.5 mm Length x 18.3 mm Diameter (1.67" x 0.72")
- Head Shape- Round (see protrusive and flat head types below)
- Voltage- 12V DC
- Color- Yellow
- Luminous Intensity- 40 to 60 mcd
- Operating Voltage- 10.8 to 13.2V DC
- Operating Current- 0.02 Amps
- Operating Temperature Range- -25 C to 60 C (-13 F to 140 F)
- Dielectric Strength- 500V AC 50/60Hz for 1 min
- Insulation Resistance- Max 100MOhm (@ 500V DC mega)
- IP Protection- IP 67 (Total protection from dust and temporary immersion - 1 meter for up to 30 minutes)
- Approvals- RoHS, UL & CUL Recognized
|
|
|
 |
|
 |
|
