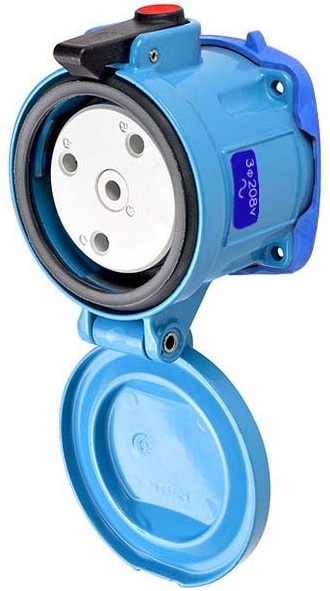

The Meltric 37-64163 DS60 female receptacle is rated for 208V and 60A. It features 3 Poles plus ground. It has a wiring capacity of 10-2 AWG with a temperature range of -40 F to 140 F. The body is aluminum, which is impact & UV resistant, while also standing up to corrosion. Type 4X for water tightness, rated IP 66 / IP 67. UL listed.
Note: Image is for reference, actual part may differ. Ground shipping only
Specifications
- Rated Voltage- 208V AC
- Rated Current- 60A

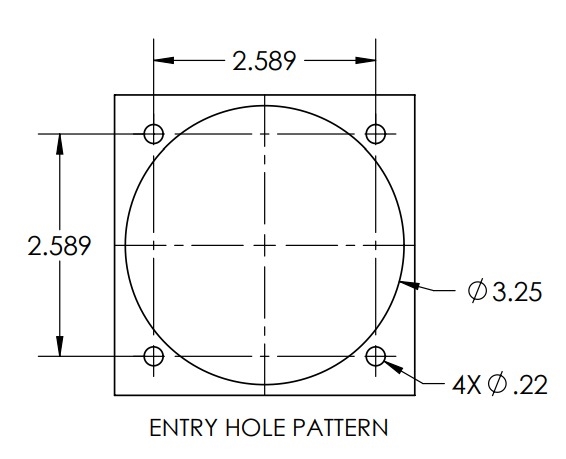

- Overall Dimensions (closed)- 5.07" Height x 4.64" Depth
- Polarity- 3 Pole + Ground
- Switch Rating (AC only)- Branch Circuit & Motor Circuit Disconnect Switching
- Horsepower Rating- 10 hp
- Short Circuit Rating- 100kA Close & Withstand
- Temperature Range- -40 F to 140 F (-40 C to 60 C)
- Impact Rating- IK09
- Wiring Capacity- 10 - 2 AWG
- Terminal Type- Screw
- Environmental Rating- Type 4X, IP 66 / IP 67
- Listings- UL, CSA
The 37-64163, part of the Meltric Decontactor series, is made for optimum safety to eliminate the risk of arc flash while still providing a quick, easy disconnect. This also makes for more efficient operation, while the durable construction is made to last without constantly needing replacements. The DS series of power connectors is ideal for heavy duty applications in industrial environments.
Made to be used with the corresponding male inlet.
Safety shutter: Closes over contacts before plug is taken out to prevent contact with active components. Shutter is opened when the compatible plug is inserted
Spring loaded contacts: Ensures that the connection has the right amount of contact pressure. Balances out variations in construction and stands up to wear and tear
Quick break mechanism: Disconnect by pushing the button, which breaks the circuit and detaches the plug.
Enclosed arc chamber: Keeps any chance of an arc flash contained inside. Contacts are kept inside the enclosure.
Spring assisted terminals: Spring ring provides pressure on the screw terminal and conductor to create a more secure connection
