The Macromatic SFPAD7C250 is a pump seal failure relay. This 8 Pin plug-in relay has an input voltage of 24V AC/DC. This dual channel relay is made to monitor for leaks in submersible pump seals and has an output of (2) 5A SPNO. The sensitivity is adjustable and can be preset to meet the resistance level needed. The dual channel feature means that the relay detects leaks for two pumps. The SFPAD7C250 features LEDs that are red when the unit energizes and senses a leak. They stay green if there is no leak once the input voltage is introduced. It uses an 8 pin 70169-D octal socket.

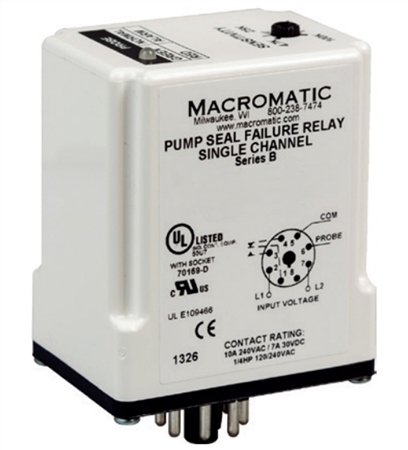

Note: SFP120A100 pictured
Specifications
- Relay Function- Seal Leak, Dual Channel
- Input Voltage- 24V AC/DC
- Output- (2) 5A SPNO
- Sensitivity Range- 1K to 250KOhm
- Voltage Tolerance- +10/-15% of nominal
- Load- 3VA
- Probe Voltage- 5V DC Pulsed
- Operating Temperature- -28 C to 65 C (-18 F to 149 F)
- Storage Temperature- -40 C to 85 C (-40 F to 185 F)
- Output Contacts- (2) 5A @ 240V AC / 5A @ 28V DC, 1/4 HP @ 120V AC (N.O.)
- Life- Mechanical: 10,000,000 Operations, Full Load: 100,000 Operations
- Response Time- Pick up: 1 sec, Drop out: 1 sec
- Dimensions- 2.4" Height x 1.7" Width x 3" Depth
- Approvals- UL and CUL Recognized, CE, UL & CUL Listed (with Socket)
The resistance is measured by a probe that is inserted in the pump seal cavity. In the event of a leak, resistance between the probe and the connection is lowered by contaminating fluid that goes into the seal cavity. The relay energizes when the resistance goes below the preset sensitivity point.
