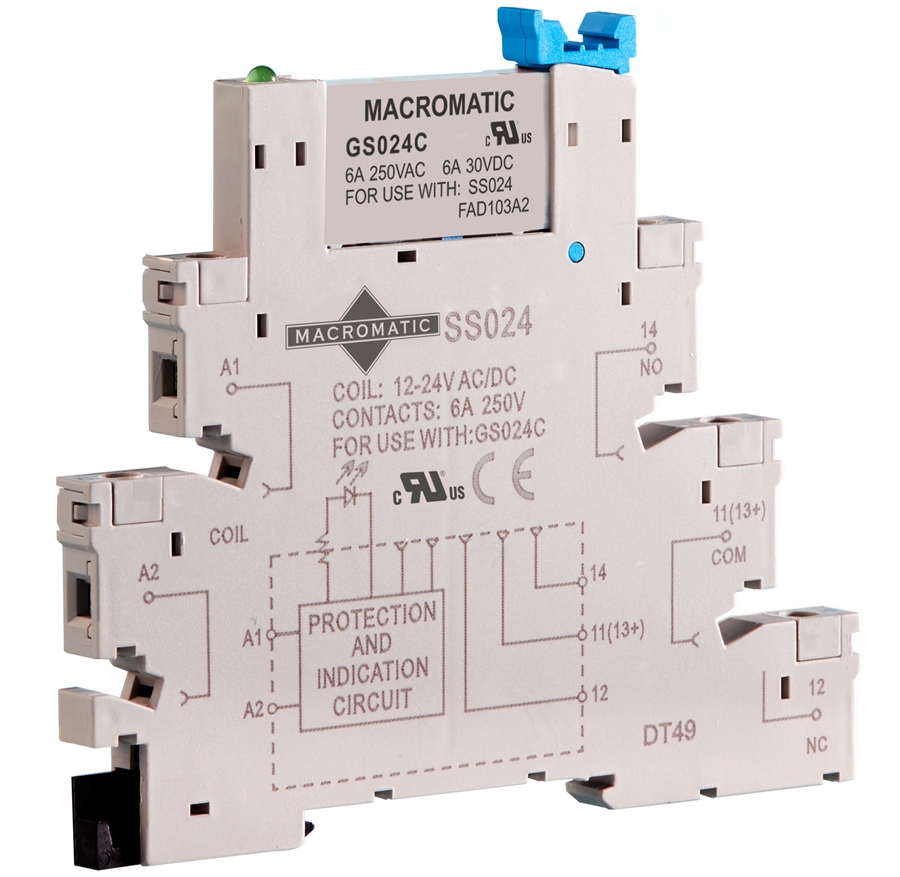

The Macromatic GSC024C is a general purpose slim relay. This DIN-Rail mount relay has a control voltage of 24V & 6 A 1 Form C output. The housing is only 6 mm for high density applications and has an LED indicator to show the power status. Relay & socket arrive as one unit and need to be used together. Features finger safe protection.

Specifications

Relay Type- General Purpose, DIN-Rail Mount
Control Voltage- 24V AC/DC

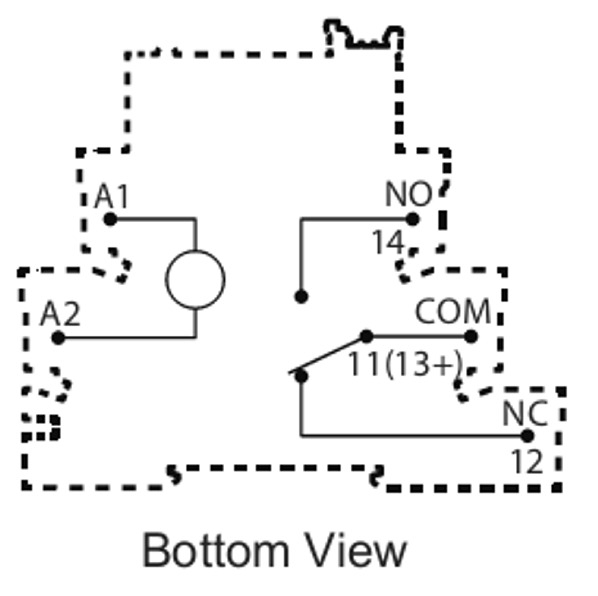

Output- 6 Amp 1 Form C
Load- Max. 250 mW
Voltage Tolerance- +/- 10% nominal coil voltage
Temperature- -40 C to 70 C (-40 F to 158 F)
Output Contacts- 6 A 250V AC / 30V DC, 1500 VA / 180 W
Life- Mechanical: 10,000,000 Operations, Electrical: 30,000 Operations
Terminal Torque- 4.43 in-lb

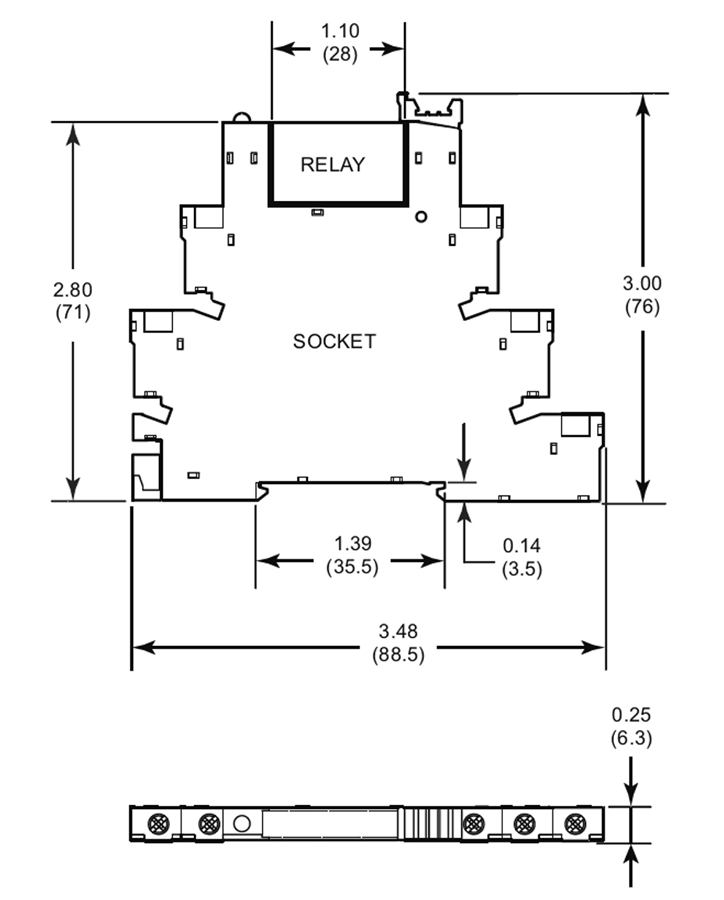

Housing Dimensions- 3" Height x 3.48" Width x 0.25" Depth
Approvals- UL & CUL Recognized, CE, RoHS Compliant

GSC024C Macromatic 24V DIN-Rail Mount Control Relay
