LiteCycle SG-AL-15P-R2 15 Position, Aluminum 30 Terminal Enclosure

15 Position Aluminum 30 Terminal Enclosure
LiteCycle 15 Position, Aluminum 30 Terminal Enclosure - SG-AL-15P-R2



Alternative Views:


Our Price: $47.35
MFG P/N: SG-AL-15P-R2
MFG: LiteCycle
Weight (lbs): 1.3


Availability:
Usually ships in 5 Business Days
Product Code: SG-AL-15P-R2
Qty:

Description

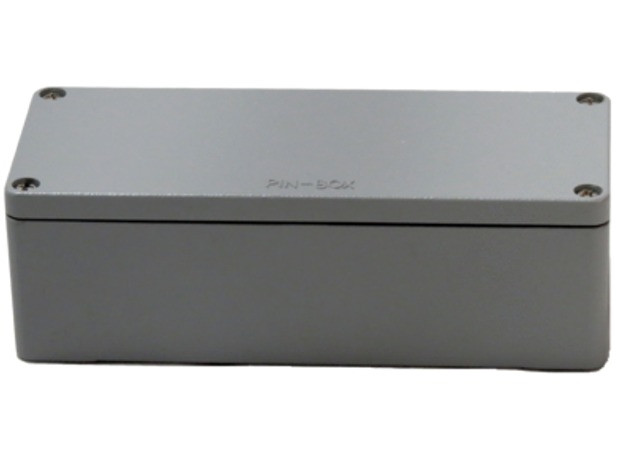

The LiteCycle SG-AL-15P-R2 is an aluminum terminal enclosure which supports 15 circuits. It is made from Cast Aluminum with a neoprene gasket in the cover. It has a voltage rating of 120V and an input current of 15A. This enclosure features dimensions for mounting hole locations that are molded inside. Grounding screws are on the cover and base. The screw terminals can support 14-20 AWG wire.

Specifications

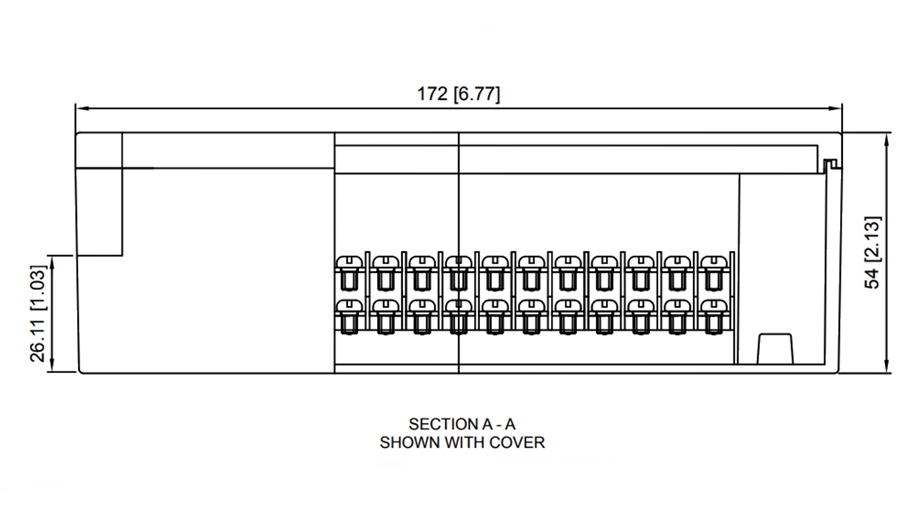

  • Dimensions- 70 mm W X 172 mm L X 55 mm H (2.76" x 6.77" x 2.16")
  • Housing Color- Gray
  • Base Material- Cast Aluminum
  • Cover Material- Cast Aluminum
  • Connection Capacity- 14-20 AWG (0.5 - 2.5mm2)
  • Terminations- 30
  • Circuits- 15
  • Rated Voltage- 120V
  • Rated Frequency- 60Hz
  • Input Current- 15 A
  • Ingress Protection- IP 67 / NEMA 12X
  • Approvals- CE, UL508A

SG-AL-15P-R2 15 Position Aluminum Electrical Enclosure

Additional Product Information

The SG-AL-15P-R2 is ideal for a number of different applications and industries including commercial wiring, robotics, machinery, automobiles, gas supplying facilities, and the solar industry. Featuring an intergrated terminal block, it is ideal for control connections and wiring trunking applications. The SGAL15PR2 is easy to install due to the grounding screws and molded dimensions, while giving wiring junctions greater protection. It gives protection from dust and can be submerged up to 1 meter for 30 minutes. Rated IP 67.
