The Kacon KMSR-DS0302 single phase solid state relay has an input voltage of 4-32V DC & a load voltage of 90-240V AC. Load current of 30A. Features a hockey puck style housing and an LED indicates the status of the control input. The clip cover has a protection rating of IP 20 (Protected from objects 12.5 mm (0.5") in diameter or greater). Note: Image is for reference, actual part may differ.
Specifications

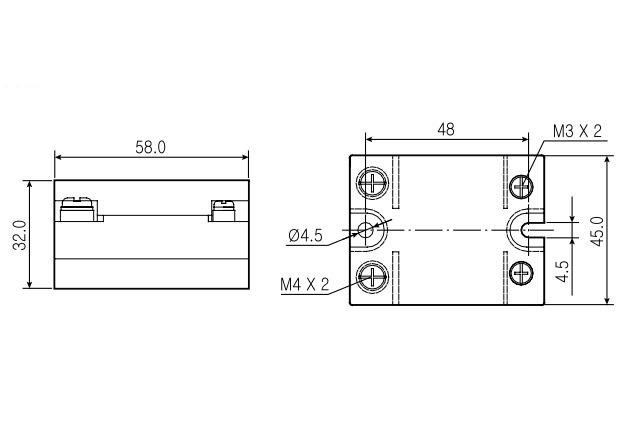

- Overall Dimensions- 58 mm Height x 45 mm Width x 32 mm Depth (2.28" x 1.77" x 1.26")
- Input Voltage- 4-32V DC
- Output Voltage- Single Phase
- Load Current- 30 Amps
- Load Voltage- 90-240V AC
- Pick-up Voltage- 3V DC Min
- Drop-out Voltage- 1.5V DC Max
- Input Current- 0.003-0.035 Amps Max
- Peak Voltage- 600V
- Frequency- 47-63 Hz
- Single Cycle Surge Current Resistance- 315 Amps
- Output Leakage Current- 0.015 Amps
- Output on Voltage Drop- 1.5V Max
- Minimum Switching Current- 1 Amp
- Pick-up/Drop-out Time- 1/2 Cycle + 1 millisecond Max
- Insulation Resistance- 100 MOhms / 500V DC (between Terminal & Case)
- Dielectric Strength- 2500V AC (50/60Hz 1 minute)
- Vibration Resistance- 10-55Hz, Amplitude: 1.5mm,x,y,z each axis 2 hours
- Shock Resistance- 1000m/s2,s,y,z each axis 3 times
- Storage Temperature- -30 C to 90 C (-22 F to 194 F)
- Ambient Temperature- -25 C to 70 C (-13 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Approvals- CE, UL & CUL Recognized
KMSR-DS0302 30 Amp 4-32V DC Solid State Relay
|
|
|
 |
|
 |
|
