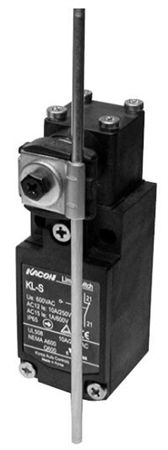

Kacon KLSAL4 Medium Duty Limit Switch, Snap Action Adjustable Rod Lever, 1NO 1NC Contacts

Overview

The Kacon KLSAL4 Medium Duty Limit Switch features an aluminum housing with a protective plastic cover and stainless steel moving components for corrosion resistance and long service life. The adjustable rod lever actuator provides precise mechanical operation and position detection in medium duty applications. Adjustable Rod Lever1NO/1NC, SPDTIP65

Supports use in packaging machines, material handling systems, and construction equipment.

Key Features

• Equipped with a 1NO/1NC snap-action contact block for fast, accurate electrical response
• NBR gasket and O-ring seals protect against dust and moisture ingress
• PG 13.5 conduit connector simplifies installation
• Lift-off safety mechanism (NC only) minimizes contact malfunction
• Adjustable Rod Lever actuator for precise mechanical operation
• 1NO/1NC, SPDT contact arrangement for control circuit switching
• Silver Alloy contacts for dependable electrical performance
• IP65 (Total protection from dust and low pressure water jets from any direction) environmental protection
• Operating temperature range of -25 C to 80 C (-13 F to 176 F)
• Lifespan rated at 500,000 (Electrical), 10,000,000 (Mechanical)

Applications

The KLSAL4 is designed for industrial equipment that needs repeatable mechanical position sensing:

• Packaging machines
• Material Handling Systems
• Construction Equipment

Performance Benefits

• Adjustable Rod Lever operation supports repeatable position sensing
• Stainless steel moving components help resist corrosion
• Snap-action contact block provides fast, accurate electrical response
• Sealed construction helps protect against dust and moisture
• Long service life with 500,000 (Electrical), 10,000,000 (Mechanical) rated durability

Specifications

Physical

Electrical

Performance

Environment

Certifications
