Overview
The

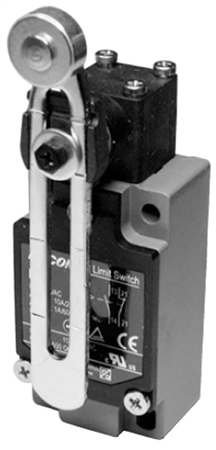

Kacon KLLAL3 Medium Duty Limit Switch features an aluminum housing with a protective plastic cover and stainless steel moving components for corrosion resistance and long service life.1NO/1NCIP65PG 13.5
The adjustable roller lever actuator provides precise mechanical operation and position detection in medium duty applications. It is well suited for packaging machines, material handling systems, and construction equipment.
💡 Reliable Mechanical Switching
Snap-Action Performance: 1NO/1NC snap-action contact block provides fast, accurate electrical response.
Sealed Construction: NBR gasket and O-ring seals help protect against dust and moisture ingress.
Adjustable Actuation: Roller lever adjusts from 42mm to 100mm for flexible installation and machine positioning.
Key Features
- Durable aluminum housing: made for medium duty industrial service
- Protective plastic cover: helps shield internal components
- Stainless steel moving components: corrosion resistance and long service life
- PG 13.5 conduit connector: easier wiring and installation
- Lift-off safety mechanism: minimizes contact malfunction on NC contacts
- CE and C UR US approval: suitable for industrial control applications
✅ Why Choose This Limit Switch?
The KLLAL3 combines rugged construction, sealed protection, and adjustable actuation for dependable position sensing in industrial machinery where flexibility and repeatability matter.
Applications
The Kacon KLLAL3 is designed for medium duty industrial switching applications such as:
- Packaging machines
- Material handling systems
- Construction equipment
- Machine position sensing
- Industrial automation equipment
⚠️ Important Product Note
Image is for reference only, housing color may differ.
Use the proper contact wiring configuration for your control circuit.
Operate the switch only within the listed temperature, humidity, and electrical limits.
Performance Benefits
- Flexible installation with adjustable roller lever length
- Accurate mechanical position detection for repeatable operation
- Reliable electrical response from snap-action contact design
- Protection against dust and moisture with sealed IP65 construction
🔧 Built for Industrial Equipment
With high mechanical life, corrosion-resistant components, and adjustable actuator reach, the KLLAL3 is built for repeated use in demanding automation and machine control environments.
