Kacon K16-190-R-12V 16 mm Red Pilot Lamp, Rectangle, 12V DC LED

Kacon K16-190-R-12V 16 mm Pilot Lamp, Rectangle, Red
Kacon K16-190-R-12V 16 mm Red Pilot Lamp, Rectangle, 12V DC LED

Alternative Views:
Price: $7.26
Note: Delivery: 2-5 Business Days
MFG P/N: K16-190-R-12V
MFG: Kacon
Weight (lbs): 0.1

Quantity in Stock :10


Availability: In Stock
Product Code: K16-190-R-12V
Qty:

Description

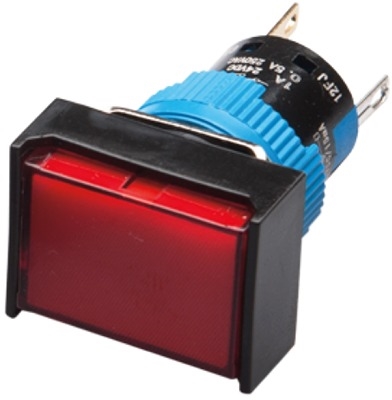

The Kacon K16-190-R-12V pilot lamp has a rectangular, red lens. Made for 16 mm (5/8") mounting holes. Lens illuminated by 12VDC LED. Rated IP 65. Pilot lamps, or pilot lights, are utilized to show when an electrical circuit is closed.

Specifications

  • Lens Shape & Color- Rectangular, Red

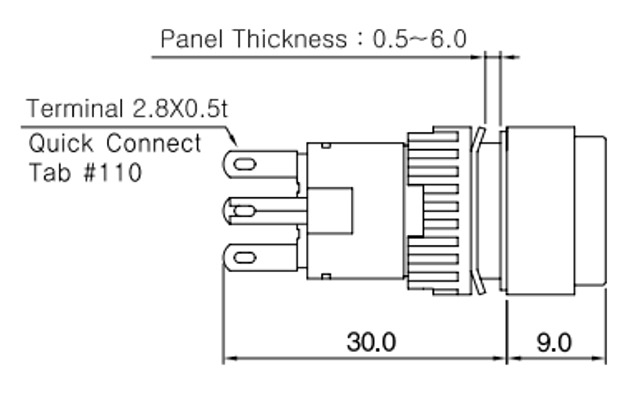

  • Dimensions- 39mm L x 24mm W x 18mm H
  • LED Voltage- 12V DC
  • LED Nominal Current- 15 mA
  • LED Lifespan- 50,000 hrs.
  • Contact Resistance- Max. 50 mOhm
  • Insulation Resistance- 100 MOhm at 500VDC
  • Dielectric Strength- 2000 VAC for 1 min
  • Vibration Resistance- 25-55Hz dual amplitude: 0.75mm
  • Shock Resistance- Endurance: 500m/s2, Operating error: 200m/s2
  • Operating Temperature: -25 C to +55 C (-13 F to 131 F)
  • Storage Temperature: -30 C to +80 C (-22 F to 176 F)
  • Ambient Humidity- 45-85% RH
  • Degree of Protection- IP 65
  • Terminal Soldering 20W 5sec / 260 C 3sec
  • Approvals- UL & CUL Recognized, CE

Kacon K16-190-R-12V Rectangular Red 12V DC LED Pilot Light
